F4-212 4-Bay NAS

Name: F4-212 4-Bay NAS
Brand: TerraMaster
Price: 224.99 USD
Availability: InStock

Integrated Backup Server

TerraMaster BBS (Business Backup Suite)

$224.99

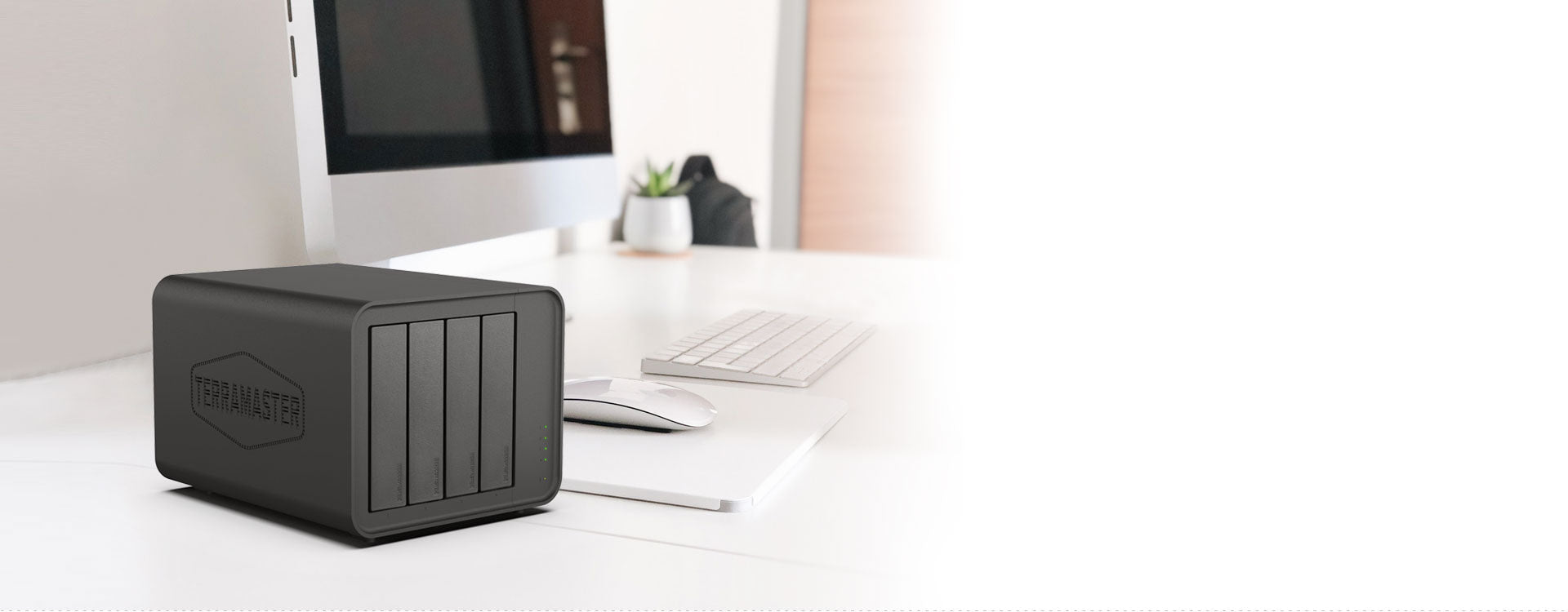

The Ultimate Home Network Storage Solution: The F4-212 NAS storage is an affordable and high-performance 4 bay NAS optimized for home and SOHO users, running the latest TOS 5.1 operating system.

Powerful Hardware: The F4-212 network attached storage adopts an ARM v8 quad-core 1.7GHz CPU with 2GB RAM (NOT upgradeable). This NAS server features powerful 4K video hardware decoding capability, and is compatible with uPnP/DLNA protocol, making it an ideal solution to serve as home multimedia center.

Across-Platform File Services: The F4-212 file server supports all mainstream file services: SMB, NFS, SFTP/FTP, AFP, iSCSI, WebDAV; and is provided with multiple permission management of users, user groups, and folders, meeting across-platform file services in various network environments.

Rich Backup Solutions: The F4-212 backup solution can provide robust measures and ensure the well-being of your valuable information by using its visual user interfaces and trustworthy storage solutions thanks to its integration with multiple backup applications such as Duple Backup, TSSS, TFM Backup, CloudSync and more, which can address backup needs in any circumstances.

Simple & Fast System Installation: To ensure simple usage, TerraMaster provides a hands-on online tutorials and videos, with a specially designed "Default mode" to set all configurations to optimal home mode, so all the steps can be completed after the first initial system installation in just a few minutes. The 4 bay NAS is compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD. Each bay supports the HDD up to 22TB (Total of 88TB in RAID 0). For stable performance, dedicated NAS drives are recommended.

More powerful performance

F4-212 is an updated version of the previous generation F4-210. In comparison with the previous generation, F4-212 is equipped with a more powerful ARM V8.2 Cortex-A55 64-bit 1.7GHz quad-core processor, built-in floating point unit (FPU) and NEON SIMD engine, 2GB DDR4, video DSP hardware acceleration, whilst also boastings more powerful 4K video encoding and decoding capabilities. The F4-212 is adequate for home document backup and providing multimedia entertainment.

New Operating System

F4-212 runs the new operating system TOS 5, which adds more than 50 new functions and 600 improvements compared with the previous generation. The new features meet more business requirements, as well as significantly improving response speed, security, and ease of use.

TOS 5

Home Data Center

The F4-212 supports up to 22 TB of a hard drive, and the total capacity can reach 88 TB. It can store 30 million HD photos, 18 million working documents, 40,000 HD movies, and 4 million downloadable music, enabling you to back up the data in Windows PC, MAC computer, mobile phone, HDD enclosure, and network disk to TNAS for centralized management. This adequately protects users from data loss resulting from hardware malfunction or ransomware.

Home Multimedia Center

The F4-212 features powerful 4K video hardware decoding capability, and is compatible with uPnP/DLNA protocol. With TerraMaster’s dedicated "Multimedia Server" app or third-party multimedia servers (Emby, Plex), it can stream videos to a variety of multimedia devices including smart phones, tablets, Roku, Apple TV, Google Chromecast, Amazon Fire TV, and smart TV, delivering users constant, reliable entertainment experiences.

Multimedia Server

Easy to swap hard drives

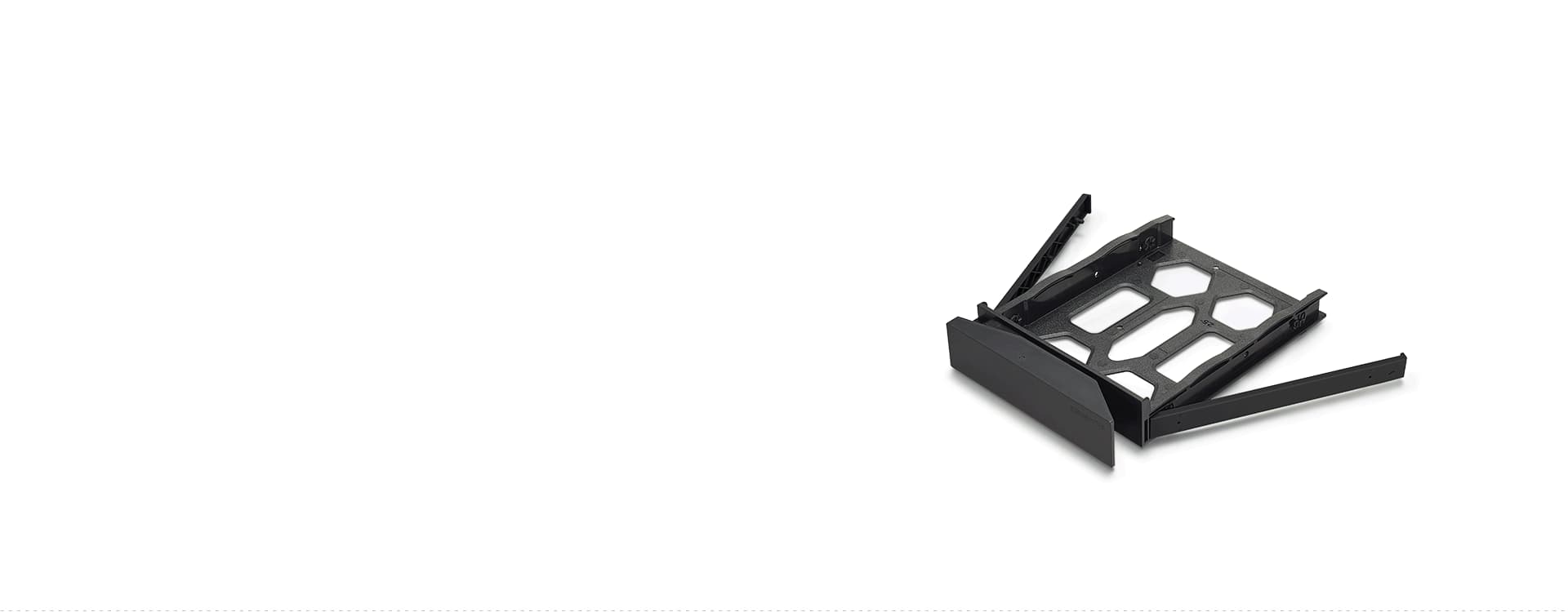

The F4-212 features a tool-free hard drive tray design that allows for easy installation and removal of hard drives without tools. Furthermore, the F4-212 incorporates a brand new Push-lock unique design from TerraMaster, which automatically locks the hard drive tray when you insert the hard drive, preventing the hard drive from falling out or disconnecting. As a result, installing a hard drive takes less than 10 seconds, providing great convenience for users who frequently swap hard drives to exchange data.

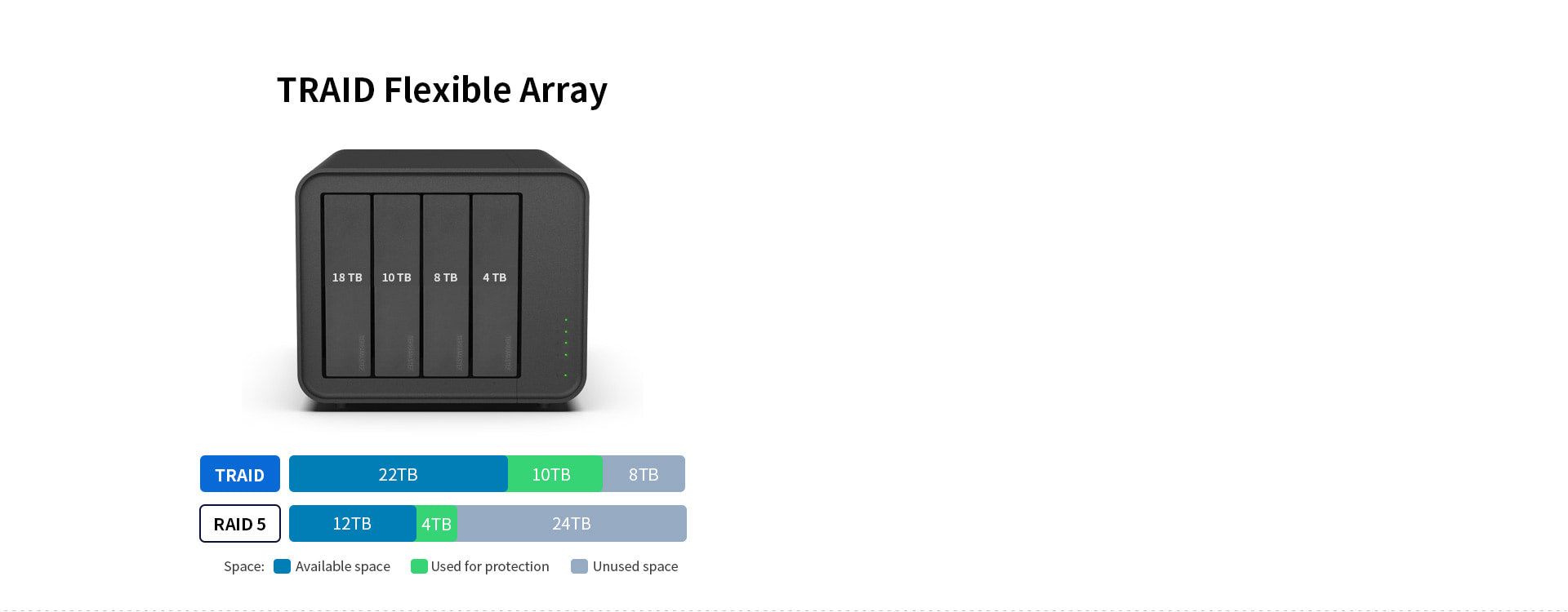

Flexible Storage Space Management

TRAID is the abbreviation of TerraMaster RAID. TRAID is a flexible disk array management tool developed by TerraMaster. It has features such as the automatic combination of disk space, hard disk failure redundancy protection, and automatic capacity expansion. All these functions do not require manual configuration by the user, and the system will automatically complete the configuration according to the properties of the hard disk. TRAID provides users with an optimized, flexible and elastic disk array management solution, especially suitable for new users who are not proficient in how to configure a disk array.

TRAID

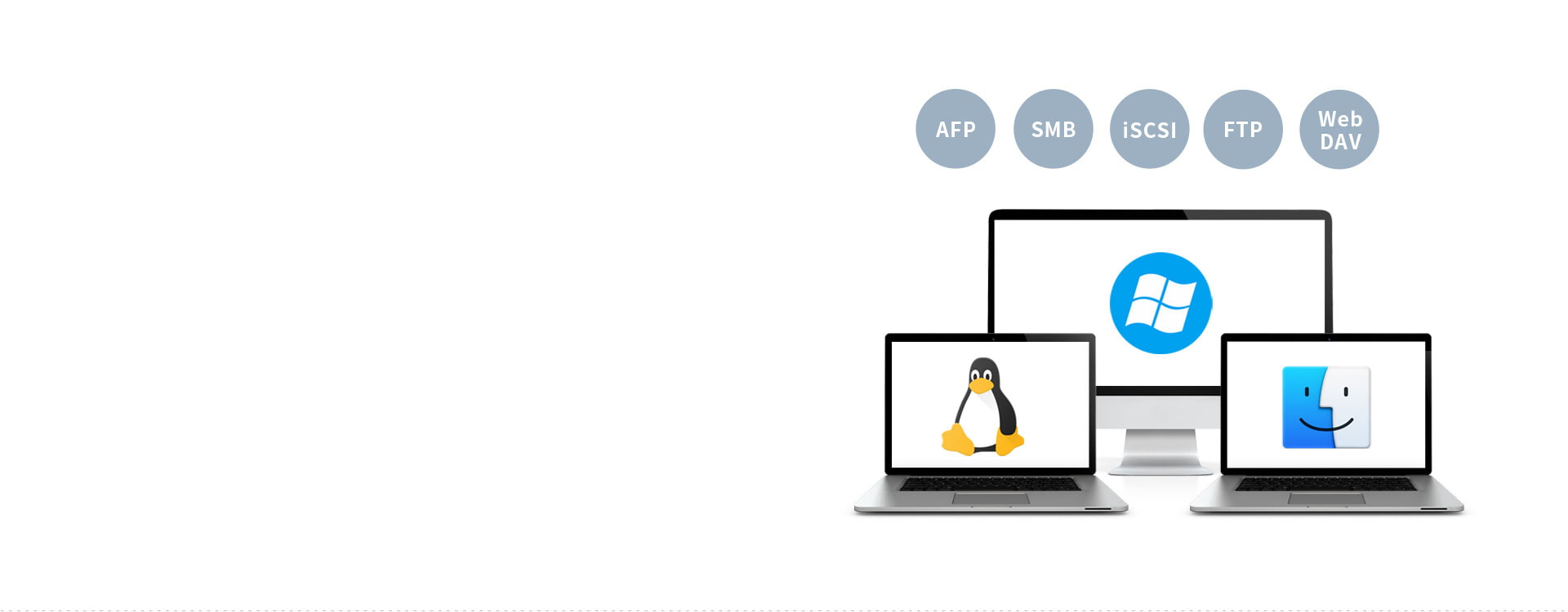

Across-Platform File Services

The F4-212supports all mainstream file services: SMB, NFS, SFTP/FTP, AFP, iSCSI, WebDAV; and is provided with multiple permission management of users, user groups, and folder, meeting across-platform file services in various network environments.

Advanced File Systems

Both the EXT4 and Btrfs file systems are supported. The Btrfs file system brings in advanced storage and Snapshot technology, which prevents data damage, reduces maintenance costs, and enhances data integrity. This also offers flexible and efficient data protection and recovery tools.

Snapshot

No Fear of Ransomware Attacks

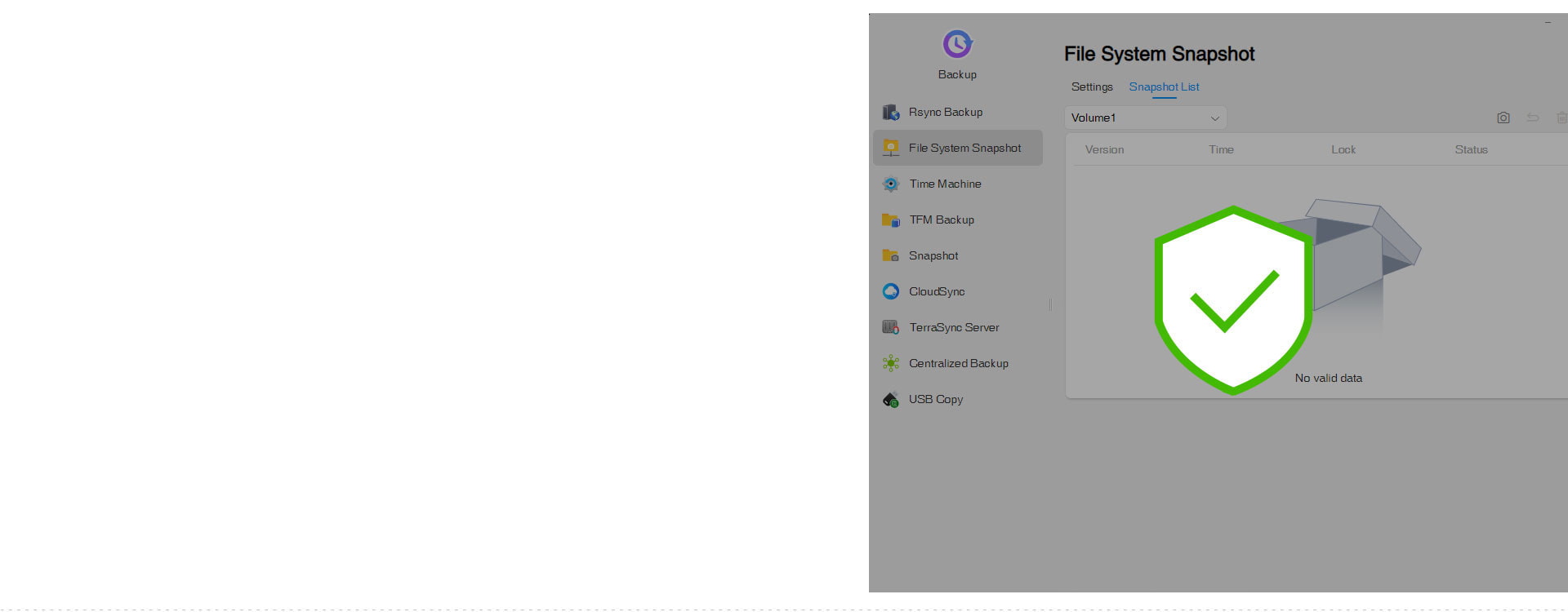

The TerraMaster File System Snapshot (TFSS) is a data protection tool founded upon on file system developed by TerraMaster. The TFSS takes snapshots of an entire file system by exploiting advantages of the features of the BTRFS file system, as such all the data on your TNAS device will be protected. In case of an accident, users just simply click the snapshot list to recover the data in an instant, without the risk of human error or ransomware attacks.

TFSS

Rich Backup Solutions

TOS can protect valuable data using visual user interfaces and trustworthy storage solutions thanks to its integration with multiple backup applications that can address backup needs in an array of circumstances.
Time Machine Backup: Allows macOS users to back up data on MAC computers, manage folder storage quotas, and selectively restore data based on the previous version of the backed up data as per timeline.
TerraMaster File System Snapshot (TFSS): TFSS takes snapshots of entire file system of a TNAS device by reaping the benefits of the features of the file system, so as to avoid data loss caused by misoperations or ransomware attacks.
TFM Backup: With TFM Backup, users can easily back up shared folders in TNAS or to a wide range of various local storage locations or even to a remotely mounted folder.
CloudSync: This backs up or synchronizes TNAS data with the cloud drive, which not only improves the availability of cloud data, but also provides several offsite backup versions, thus safeguarding the security of your data.
Snapshot: It is possible to take continuous snapshots of your folders or iSCSI LUNs by enabling the snapshot schedule with the advanced storage technology and optimized snapshot technology available via the BTRFS file system. When problems arise, the system can roll back to points-in-time and restore to the last backup, thereby ensuring that your data is well protected.
Duple Backup: In order to provide several offsite backup versions, Duple Backup provides advanced data protection by backing up files in TNAS to another remote TNAS, file server, or cloud drive.

Time Machine Snapshot
Duple Backup CloudSync
TFM Backup TFSS

Building a Convenient and
Safter Private Cloud

With TNAS.online service of TerraMaster, users can easily access files from TNAS over the Internet without setting additional port forwarding rules, DDNS, or other complex network settings. You can assign different access rights to relatives or friends, allowing them to share in your enjoyment at no extra cost. Free CloudSync supports the two-way synchronization function of Baidu Cloud, Google Drive, Dropbox, Amazon S3, OneDrive, Pcloud, Backblaze B2 and many other cloud drives, This permits users to easily open the data channel between your private cloud and public cloud drive, and enjoy the convenience of cloud life.

CloudSync

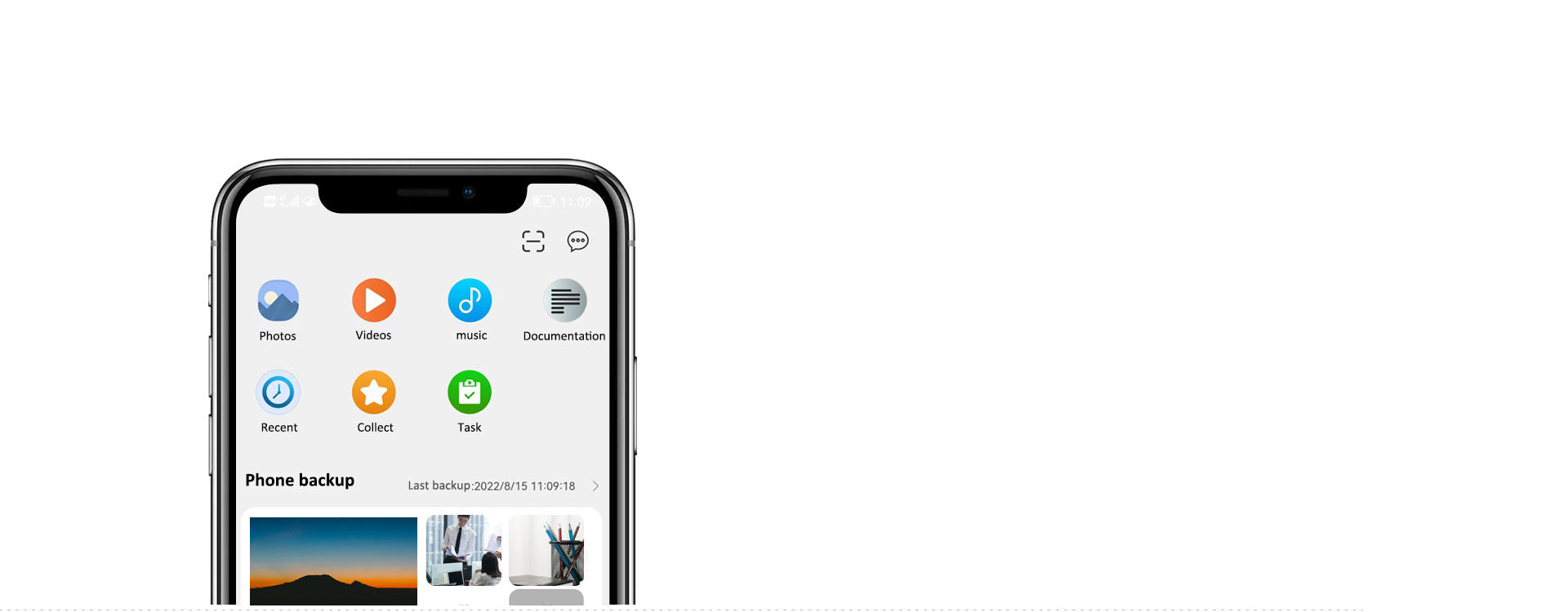

More Flexible Mobile Access

Users can access the TNAS device anytime and anywhere on any iOS or Android mobile client, allowing them to browse files, back up albums and share photos whenever they please. The TerraMaster mobile client is even equipped with a mobile administrator for easy remote management of your TNAS at home, further improving the flexibility of use.

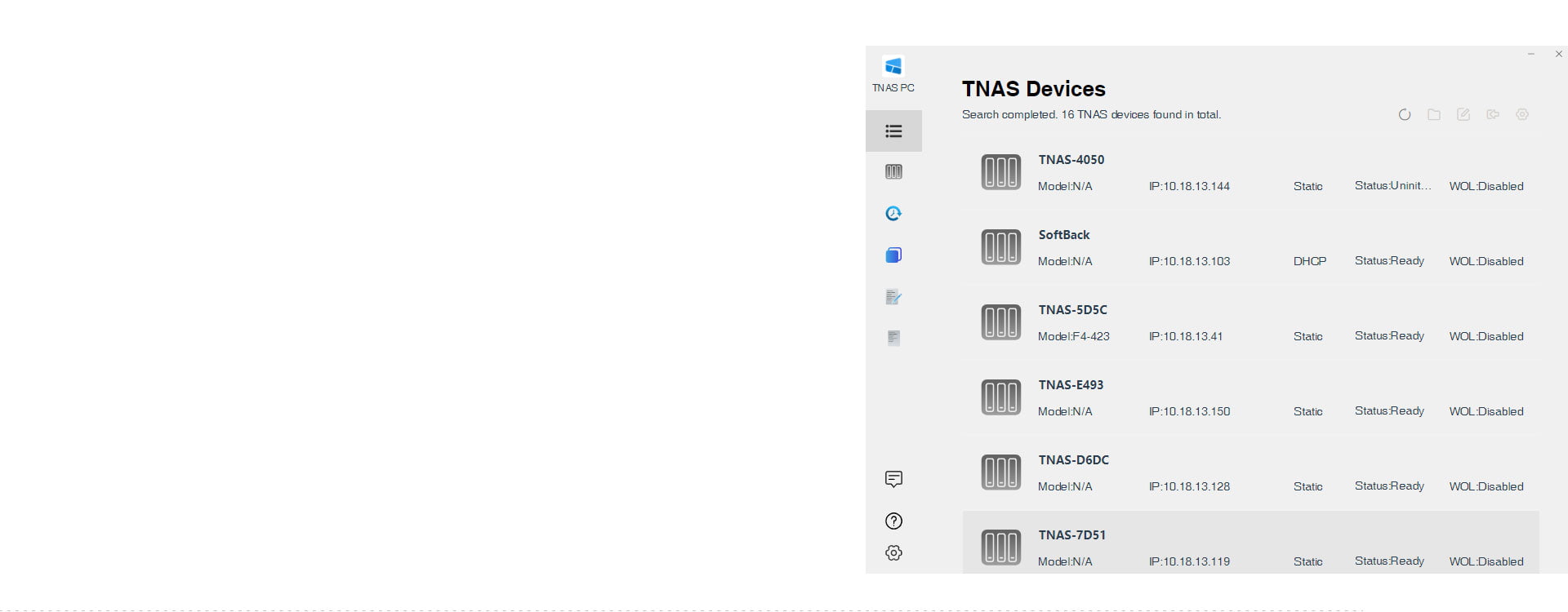

Improved Desktop Assistant

For convenience, the desktop client specially developed by TerraMaster for Windows and MAC can help users quickly find devices in the network, create a quick access connection, browse files through a single click, and get technical support in a rapid manner. Furthermore, it entails data synchronization and backup, making it a sufficient tool to assist computer users.

Simple & Fast System Installation

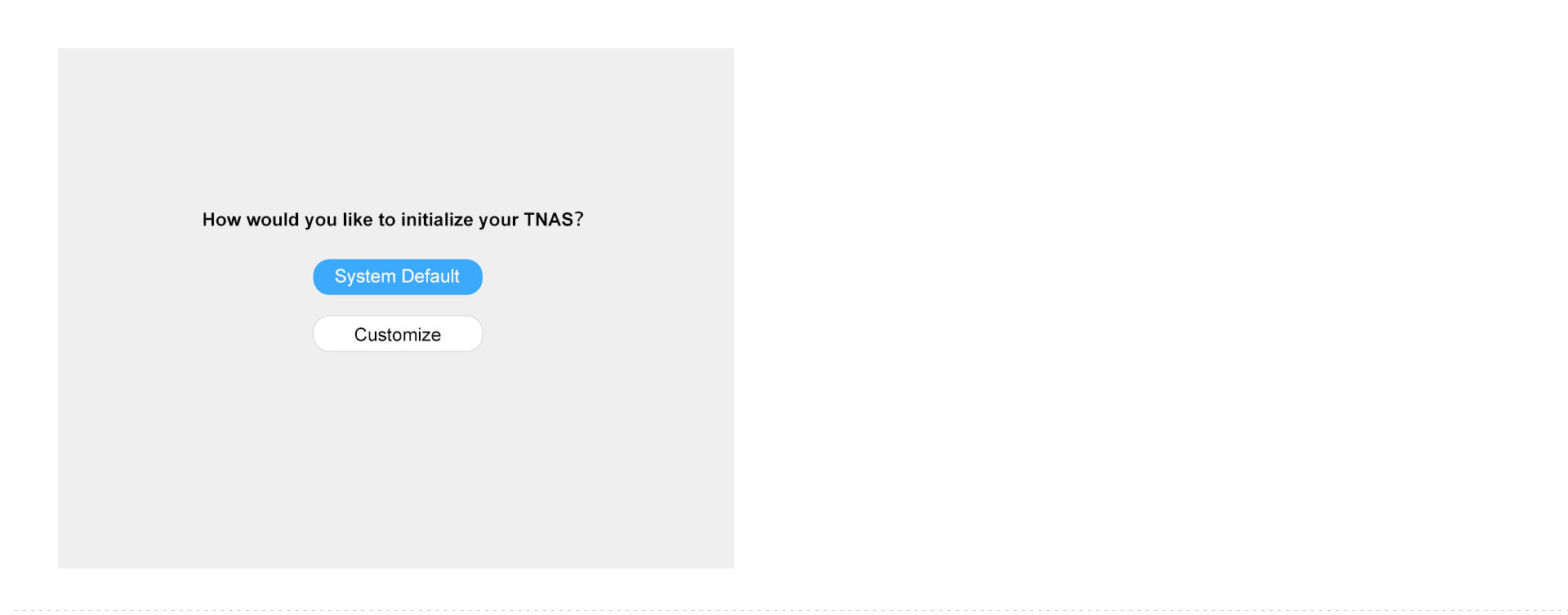

To ensure simple usage, TerraMaster provides a hands-on online tutorials and videos, with a specially designed "Default mode" to set all configurations to optimal home mode, so all the steps can be completed after the first initial system installation in just a few minutes.

Rich Multimedia Applications

TerraMaster App Center provides a variety of tools free of charge, including Aria2, qBittorrent, and Transmission, allowing you to manage the document transmission and video download at a high speed in a convenient manner. Various multimedia applications including Multimedia Server, Plex, Emby, Terra Photos, iTunes Server are supported making it more feasible to manage, share and play family movies, photos and music.

Multimedia Server Plex
iTunes Server

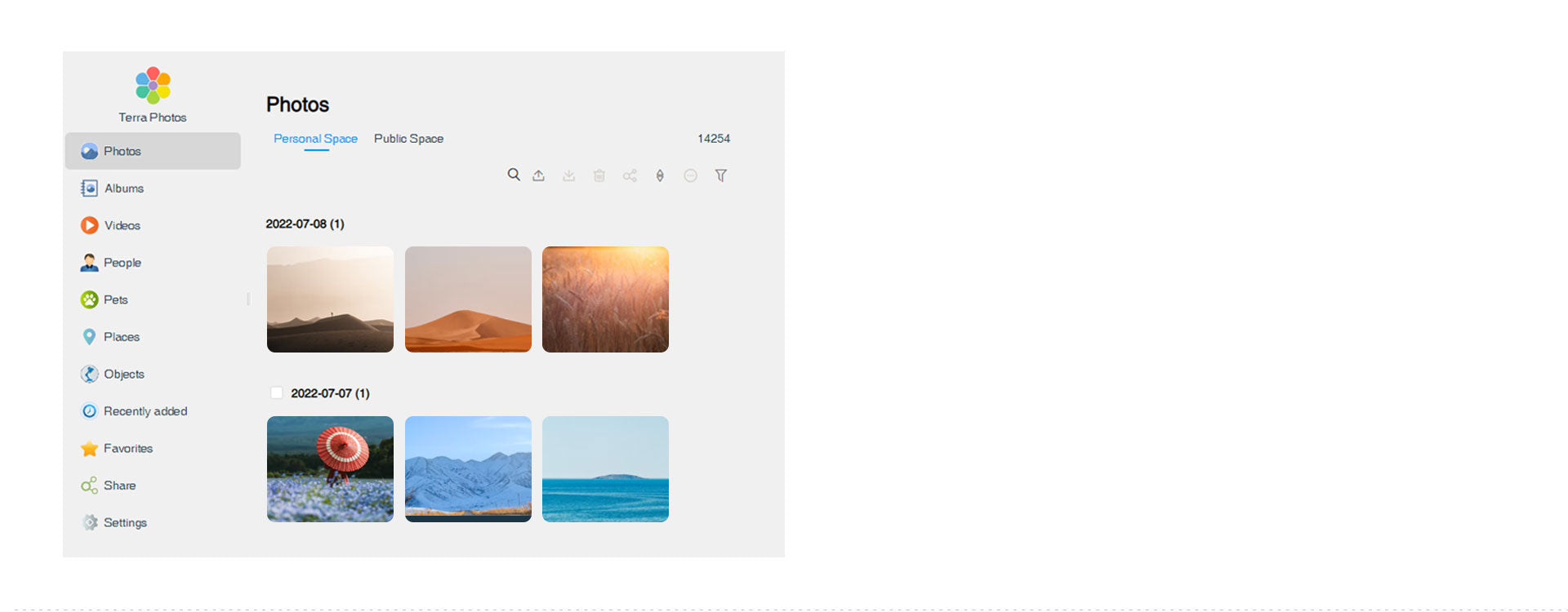

AI Album Management

Terra Photos has an AI image recognition engine, which can recognize faces and objects in photos, and automatically form photo albums of "People" and "Objects" with similarly appearing people and objects. Meanwhile, it can also classify photos via location automatically. Users can quickly find photos taken in various locations in the "Location Album", which reflects a more intuitive and fluent photo management and sharing experience.

Terra Photos

Docker Brings Greater
Possibilities

TerraMaster's Docker Manager integrates Docker Hub, the world's largest free container image repository, making it easier for you to find and share container images. Docker Manager provides an intuitive graphical user interface. You can directly download images in Docker Manager, to manage and maintain containers in operation.

Docker Manager

Worry-free After-sales Service

TerraMaster implements its unique after-sales service policy that "provides replacements within 2 years" and offers worry-free quality assurance through real-time online customer service, a professional technical forum, an online user guide, a technical service mailbox, and remote troubleshooting.

F4-212参数

处理器
处理器型号	Realtek 1619B
处理器架构	ARM V8.2 Cortex-A55 64-bit
处理器主频	四核 1.7GHz
CPU 单核得分	/
硬件加密	√
硬件转码	/
内存
系统内存	2 GB
预装内存模组	/
内存插槽总数	/
最大支持内存	2 GB
说明	铁威马保留根据供应商的产品使用周期更换具有同等或更高频率的内存模块的权利。请放心，为确保性能的一致性，将进行相同基准测试严格验证更换模块的兼容性和稳定性。
存储
硬盘插槽数量	4
兼容硬盘类型	3.5" SATA HDD
	2.5" SATA HDD
	2.5" SATA SSD
2280 M.2 NVMe插槽数量	/
最大内部存储容量	88 TB (22TB x4) (实际容量因RAID模式而异)
硬盘热插拔	√
说明	硬盘供应商将发布最新型号的硬盘，最大内部存储容量将相应调整。单一卷最大容量与最大内部容量没有直接关系。
文件系统
内部硬盘	Btrfs, EXT4
外部硬盘	EXT3, EXT4, NTFS, FAT32, HFS+
外部接口
RJ-45 千兆网络接口	1（读：112MB/s；写：110MB/s）
RJ-45 2.5G 网络接口	/
RJ-45 10G 网络接口	/
SFP+ 10GbE 网络接口	/
USB3.0 Host 接口	1
USB2.0 Host 接口	1
COM 接口	/
HDMI	/
VGA	/
PCIe 插槽数量	/
M.2 2280 NVMe 插槽数量	/
外观
尺寸（高 * 宽 * 深度）	222 x 179 x 154 mm
包装尺寸（高 * 宽 * 深度）	300 x 275 x 186 mm
重量	净重: 1.9Kg 毛重: 3.7Kg
其他
系统风扇	120 x 120 x 25毫米 1PCS
风扇模式	智能，高速，中速，低速
噪声水平	21.0 dB(A) (满载 Seagate 4TB ST4000VN008 硬盘闲置状态)
电源	72 W
冗余电源	/
交流电源输入电压	100V - 240V AC
电流频率	50/60 Hz, Single frequency
功耗	33.2 W(满载 Seagate 4TB ST4000VN008硬盘在读写状态)
功耗	12.4 W (满载 Seagate 4TB ST4000VN008硬盘在休眠状态)
有限保修年限	2 年
认证	FCC, CE, CCC, KC
环境	RoHS, WEEE
温度
工作温度	0°C ~ 40°C (32°F ~ 104°F)
存储温度	-20°C ~ 60°C (-5°F ~ 140°F)
相对湿度	5% ~ 95% RH
包装清单
	主机 (一个)
	电源线 (一条)
	电源适配器（1个）
	RJ-45网线(一条)
	快速安装指南(一本)
	有限保修说明(一本)
	螺丝
TOS 特色
支持的系统
支持客户端系统	Windows OS, Mac OS, Linux OS
支持网络浏览器	Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version.
支持的移动系统	iOS14.0, Android 10.0 or later version
存储管理
支持的RAID类型	TRAID, Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6
最大内部卷	64
最大iSCSI Target 数	32
最大iSCSI LUN 数	32
以更大容量的硬盘扩展卷容量	TRAID, RAID 1, RAID 5, RAID 6
以增加硬盘来扩展卷容量	/
RAID 迁移	√
SSD 缓存	√
热备盘	/
SSD TRIM	√
硬盘 S.M.A.R.T.	√
希捷 IHM	√
NVRAM 写缓存（有BBU保护）	/
共享文件夹快照	√
LUN 快照	/
文件服务
文件协议	SMB/NFS/FTP/SFTP/WebDAV
最大并发SMB / AFP / FTP/SFTP连接数	100
Windows ACL 集成	√
NFS Kerberos身份验证	√
账号与共享文件夹
最大本地用户数	128
最大本地用户组数	128
最大共享文件夹数	128
最大共享文件夹同步任务	2
备份
Rsync 备份	√
双重备份	√
中央备份	/
快照	√
USB 备份	√
云同步	√
时光备份	√
文件系统快照	√
TFM Backup	√
网络
TCP/IP	IPv4/IPv6
协议	CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP
连接聚合	/
DLNA 兼容	√
VPN 客户端	√
VPN 服务器	√
代理客户端	√
代理服务器	/
UPnP/Bonjour 发现服务	√
TNAS.online 远程访问	√
DDNS	√
访问权限管理
用户批量创建	/
导入/导出用户	√
用户存储容量管理	√
CIFS/SMB/FTP 本地用户访问控制	√
域身份验证
AD域	√
LDAP 客户端	√
LDAP 服务器	/
安全
防火墙保护	√
账户自动锁定保护	√
AES 共享文件夹加密	√
SSL证书输入	√
email、桌面通知、蜂鸣器即时警告通知	√
RSA 2048加密（TOS 5.0）
PAM认证	√
OTP（TOS 5.0）	√
HyperLock文件系统（TOS 5.0）	√
电源管理
电源自恢复	√
计划开关机	√
网络唤醒	√
UPS 支持	√
管理
多窗口多任务系统管理	√
客制化桌面	√
控制面板	√
资源监控	√
事件日志	√
系统界面语言	英语,德语,法语 , 西班牙语, 意大利语, 匈牙利语,中文,日语,韩语,土耳其语,葡萄牙语,俄语
应用程序
应用中心	√
iSCSI Target	√
Terra Photos	√
TerraSync	/
双重备份	√
云备份	√
中央备份	/
USB 备份	√
VPN 服务器	√
Transmission	√
qBittorent	/
Aria 2	√
Terra Search	/
数据去重	/
网页服务器	√
杀毒软件	/
EMBY	√
多媒体服务器	√
Plex Media Server	√
Docker Manager	√
Snapshot	√
