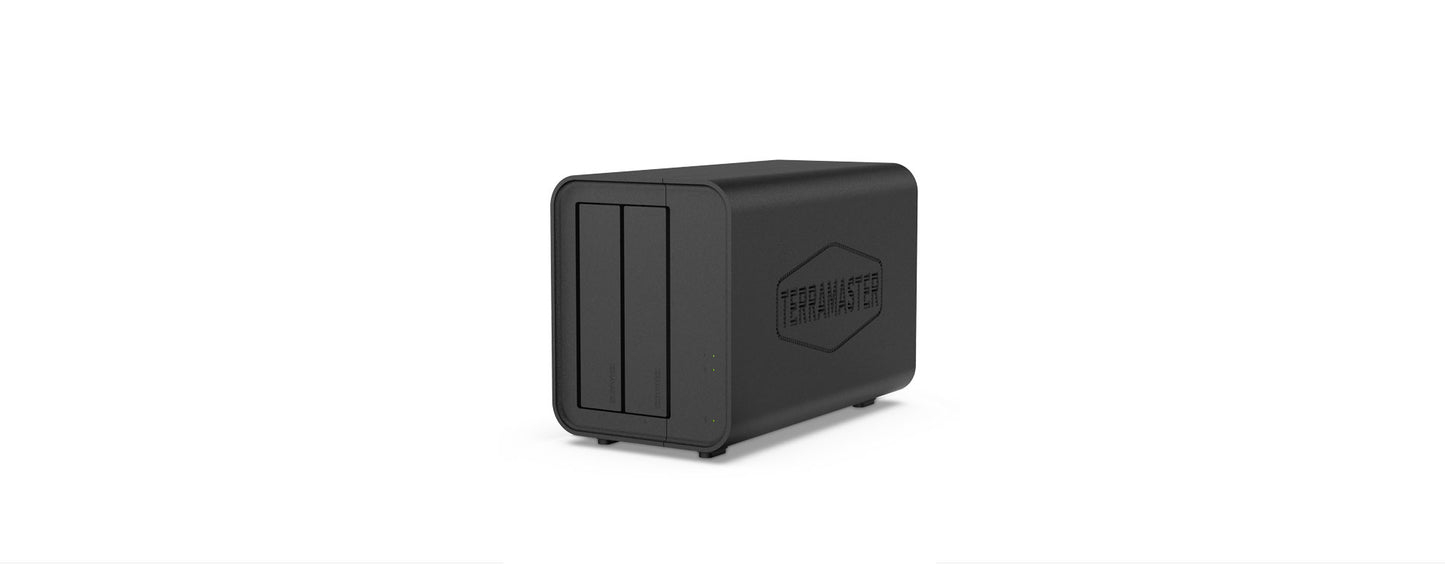

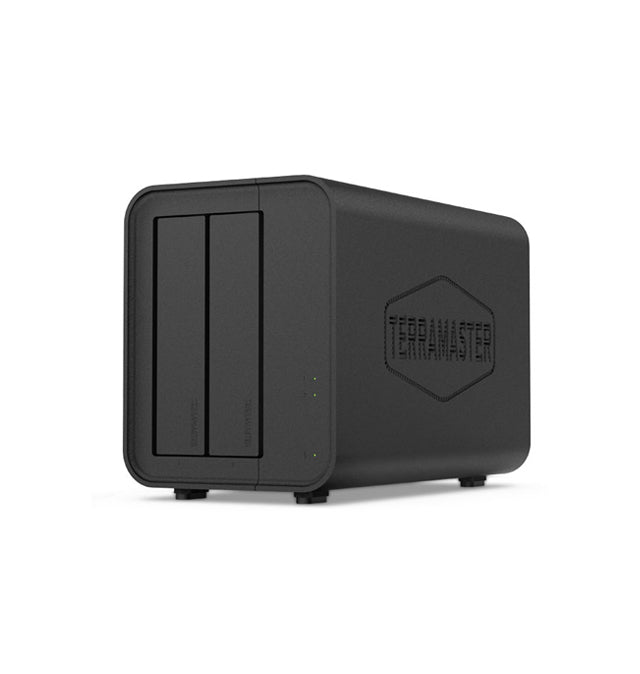

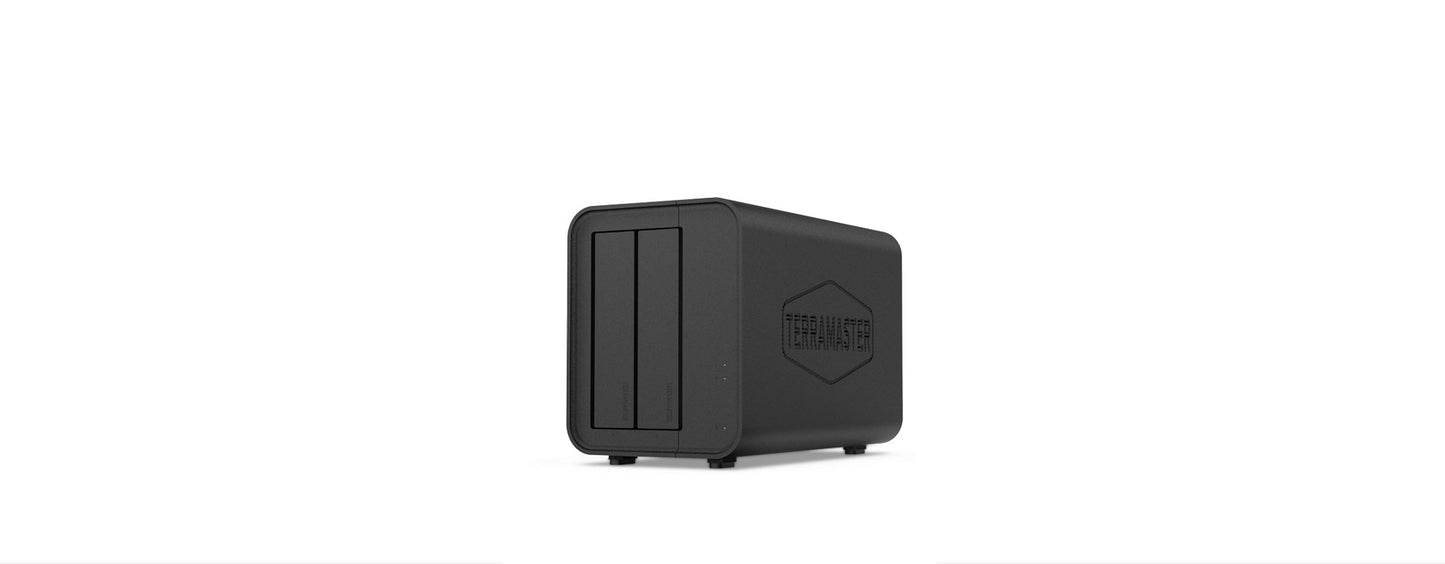

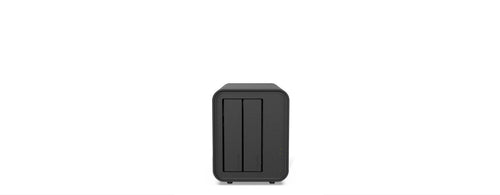

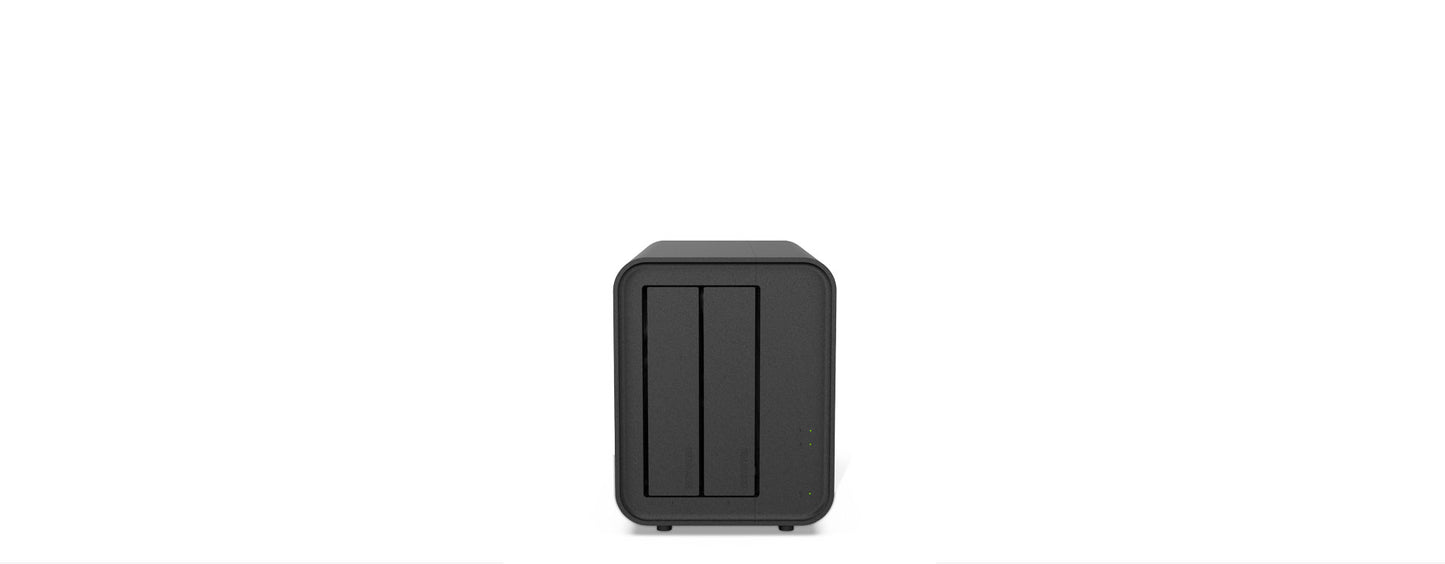

D5-Hybrid
D5-Hybrid
Regular price
$197.99 USD
Sale price
$197.99 USD
Regular price
$219.99 USD
Unit price
per
Shipping calculated at checkout.

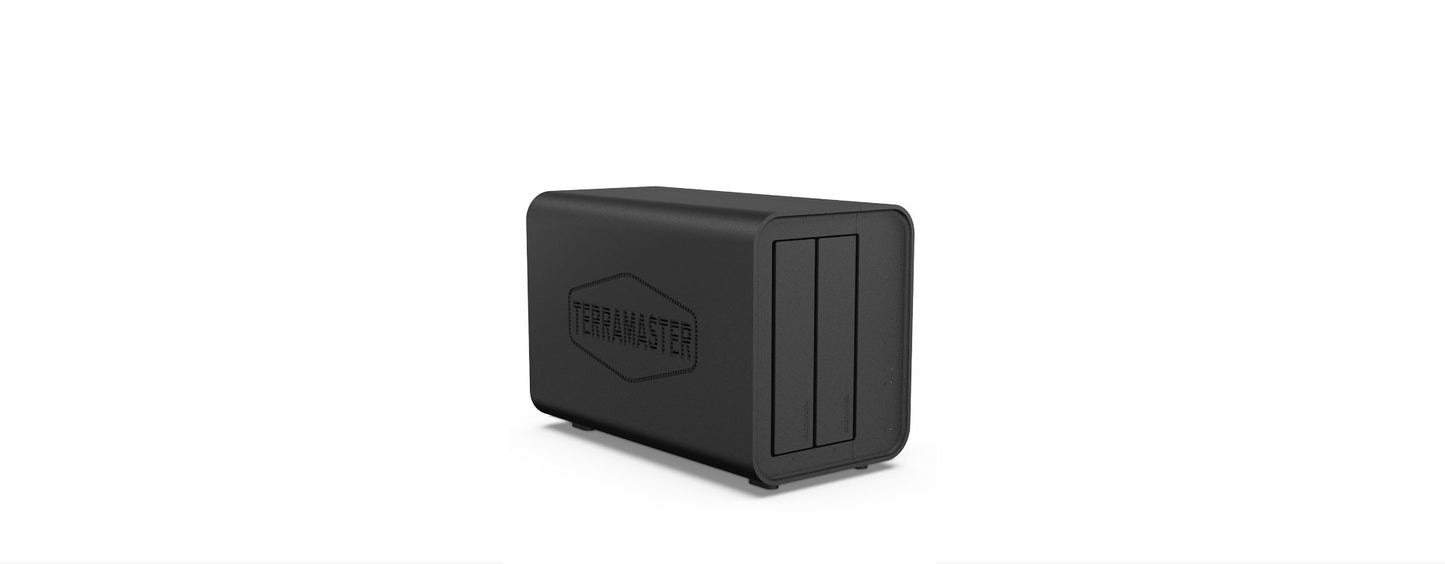

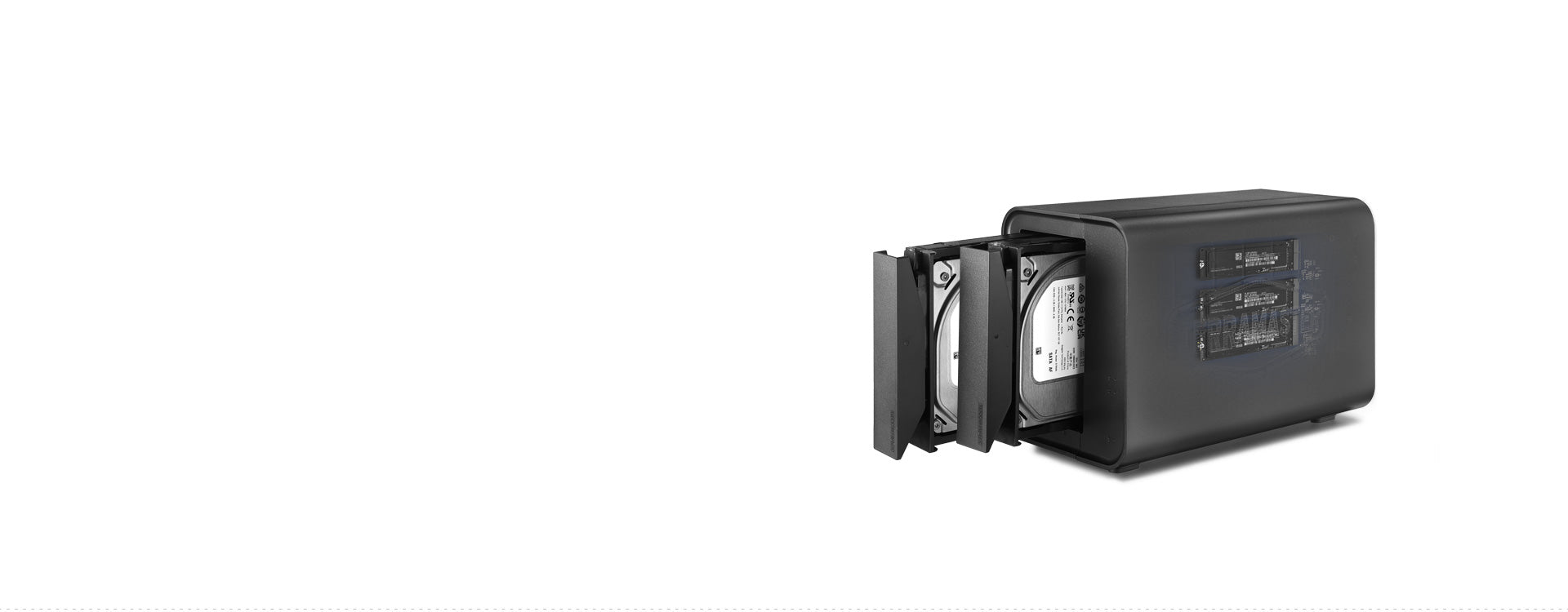

Industry’s First Hybrid DAS Solution: Combines two 3.5-inch SATA HDD/SSD bays with three M.2 NVMe SSD bays. Manually store active "hot data" on the high-speed SSDs for performance, and archive "cold data" on the high-capacity HDDs for economy, achieving the optimal balance.

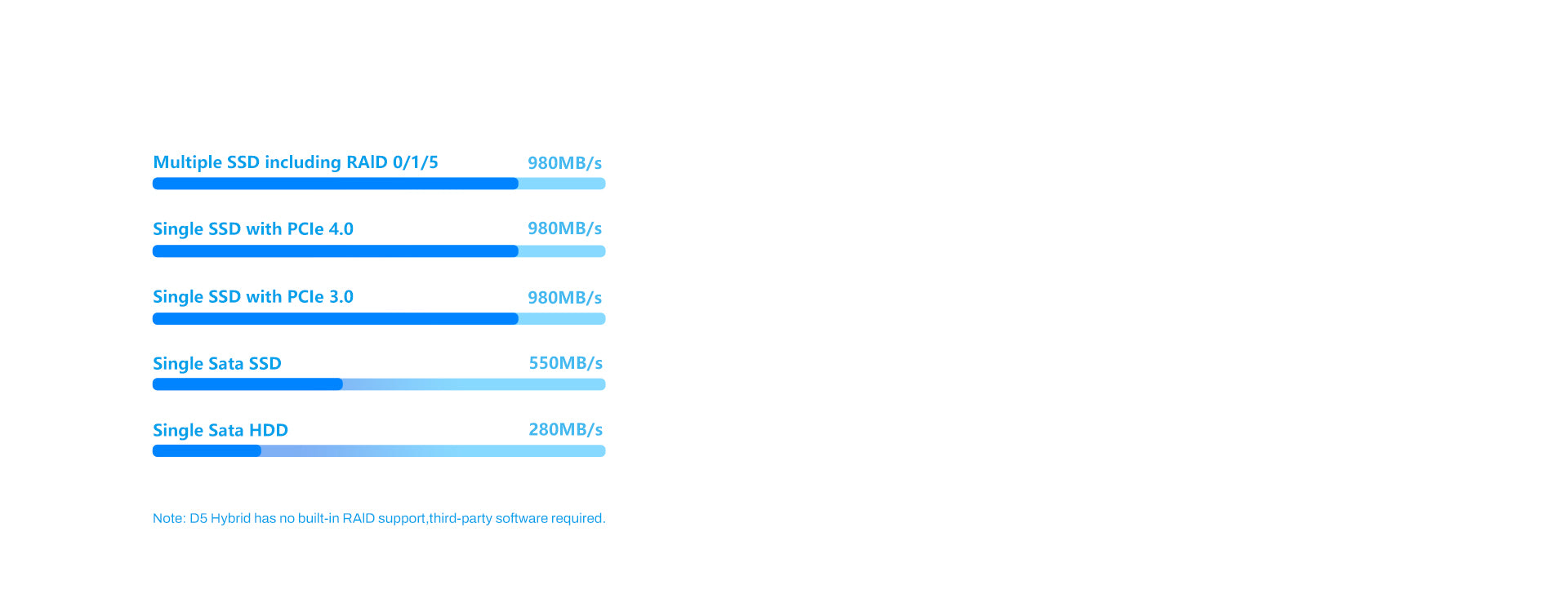

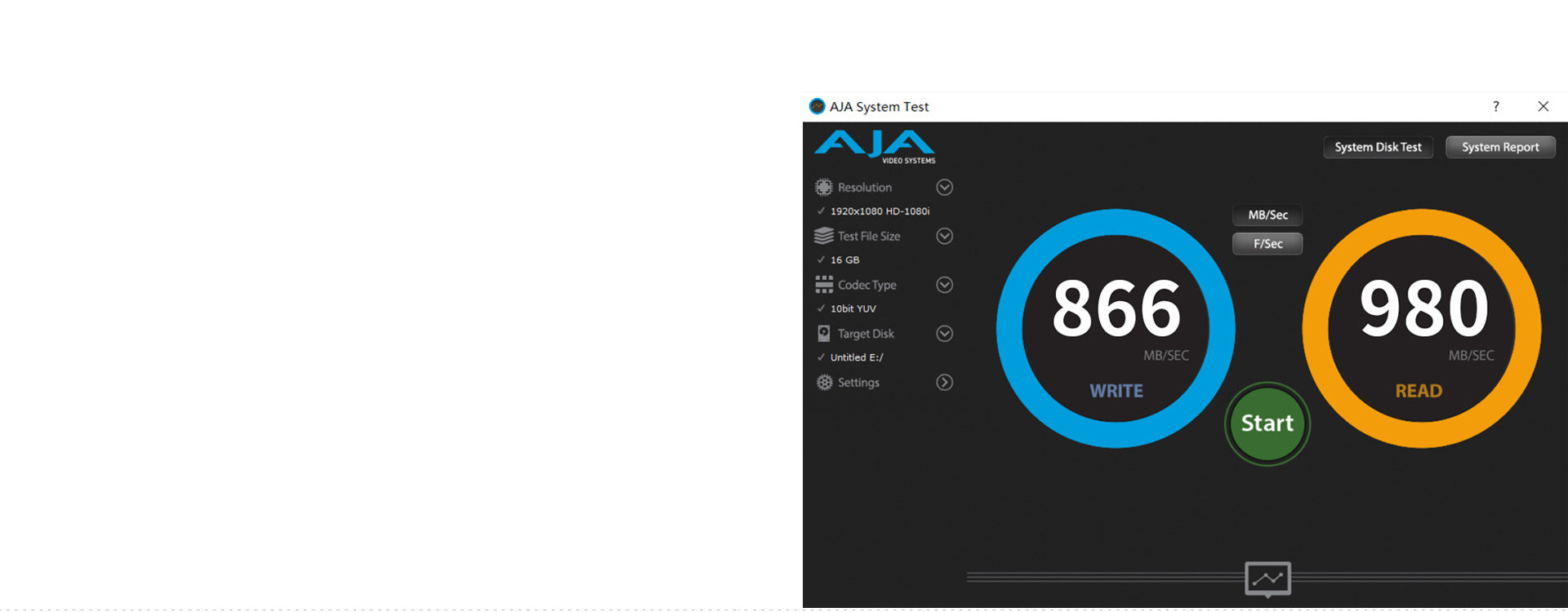

10Gbps High-Speed Transfer: Features USB 3.2 Gen2 protocol with 10Gbps bandwidth. Delivers read speeds up to 980MB/s (with NVMe SSDs) and 960MB/s (with SATA SSDs), significantly accelerating large file workflows.

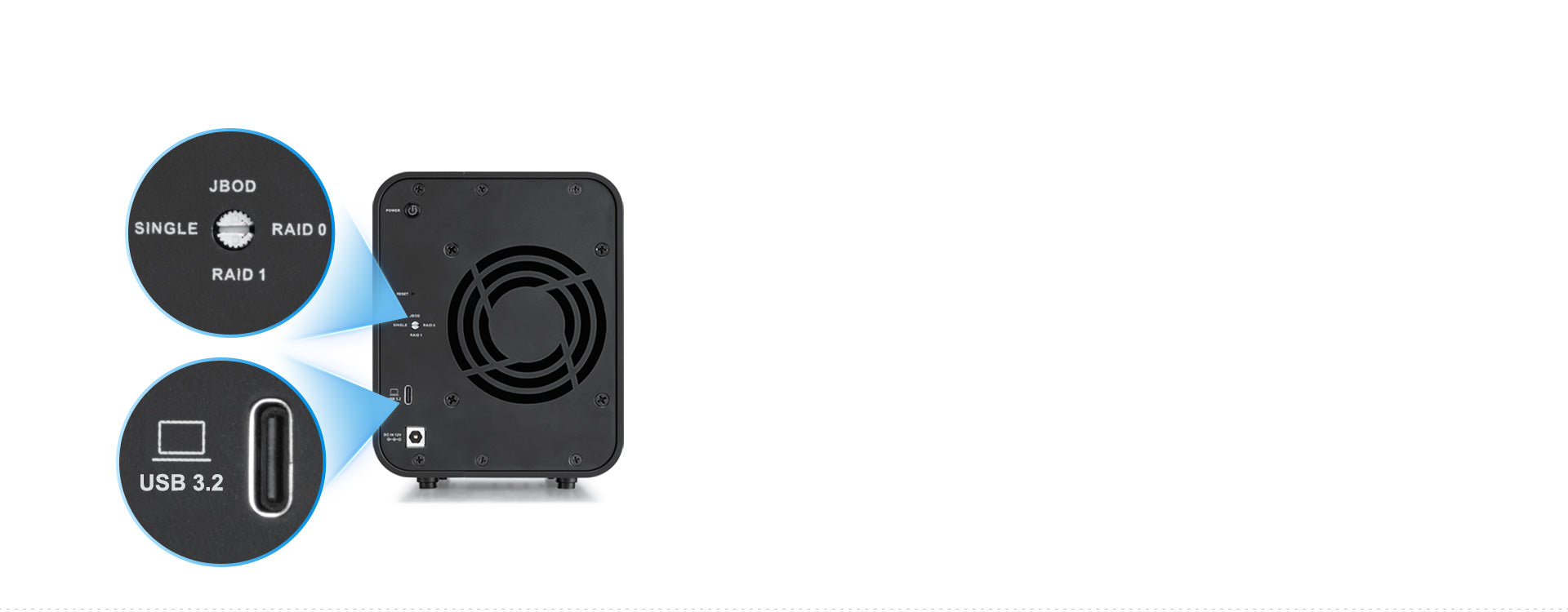

Unique 2+3 Storage Modes: The two SATA bays support RAID 0, 1, JBOD, or Single modes for flexible, large-capacity storage. The three M.2 SSD bays operate in single-disk mode, dedicated to high-speed tasks. Supports up to 32TB HDDs and 8TB SSDs, for a maximum total capacity of 88TB.

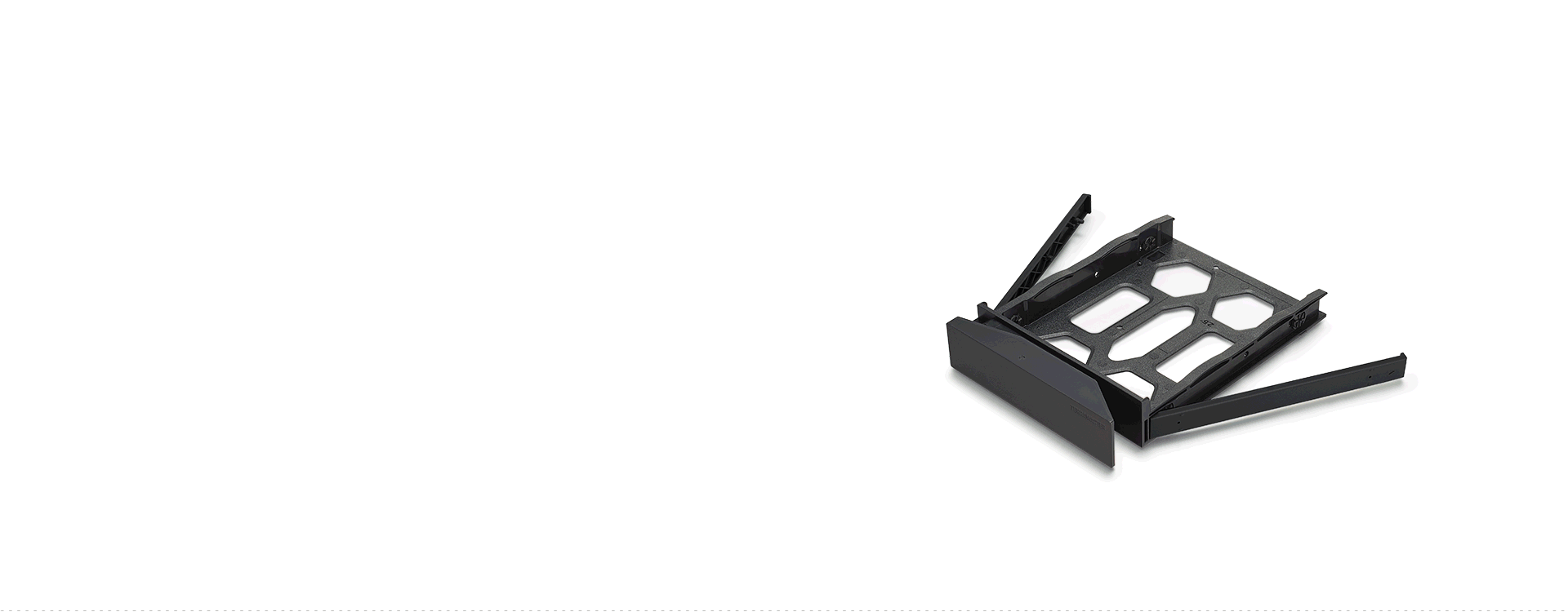

Tool-Free & Secure Push-Lock Design: Features tool-free drive trays and a unique Push-Lock mechanism that automatically secures drives upon insertion, preventing disconnection. Drive installation or swap takes under 10 seconds.
Intelligent Cooling & Ultra-Quiet 19dB Operation: An intelligent temperature-controlled fan and dedicated M.2 SSD airflow channel maintain optimal temperatures. Advanced noise-dampening design results in standby noise as low as 19dB(A), 50% quieter than previous generations.

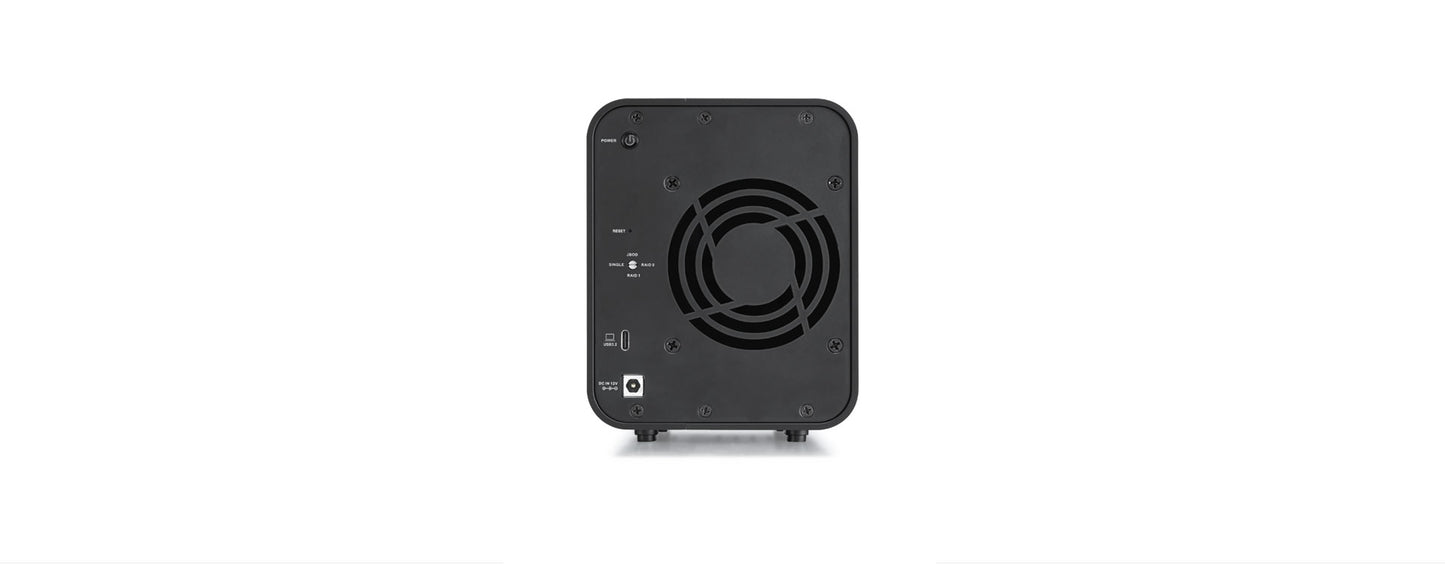

Broad Compatibility & Built-in Protection: USB-C interface ensures compatibility with Windows, macOS, Linux, and Thunderbolt 3/4. Includes advanced power protection to safeguard against incompatible power sources.
2-Year Worry-Free Warranty: Professional Support for Your Data's Future.
Couldn't load pickup availability
Features
参数
D5 Hybrid参数
| 硬件 | |
| 存储设备 | |
| 硬盘数量 | 2 |

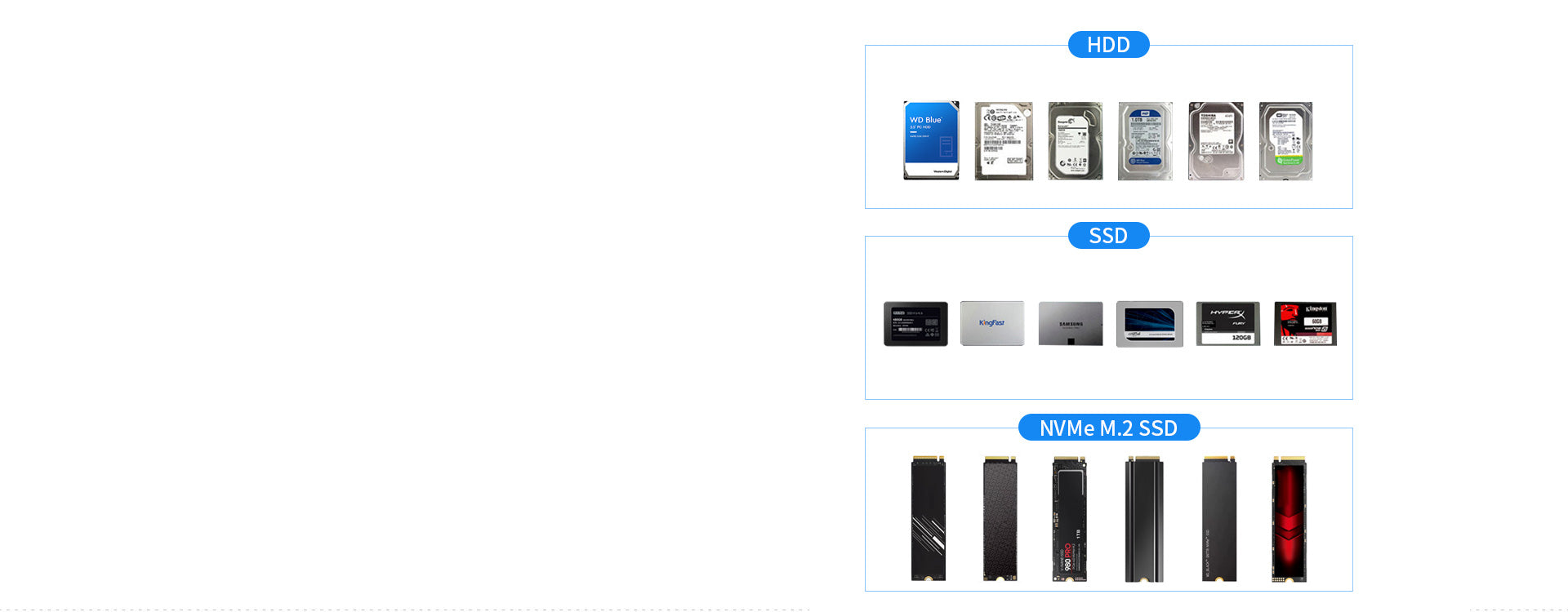

| 兼容硬盘类型 | 3.5英寸 SATA硬盘/2.5英寸 SATA SSD |
| M.2 2280 NVMe 插槽数量 | 3(PCle3.0/4.0/5.0) |
| 支持磁盘阵列类型 | SINGLE DISK,JBOD,RAID 0,RAID 1（仅HDD1和HDD2支持创建阵列，其余均为Single模式运行。） |
| 储存容量可达 | 68 TB (22TB HDD * 2 +8TB M.2 SSD * 3 ) |
| 外接端口 | |
| 数据传输接口 | USB type-C x 1 |
| 数据传输接口速率 | USB3.2 10Gb |
| 数据传输线 | USB type-C to C |
| 文件系统 | |
| 硬盘格式 | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| 读取速度 (max.) | 读：565MB/s ( HDD*2_RAID0 ); 读：960MB/s ( SSD*2_RAID0 )； |
| 读取速度 (max.) | 读：980MB/s (NVMe M.2 SSD*1) |
| 写入速度 (max.) | 写：524MB/s (HDD*2_RAID0); 写：956MB/s ( SSD*2_RAID0 )； |
| 写入速度 (max.) | 写：880MB/s ( NVMe M.2 SSD *1 ) |
| 操作系统 | |
| 支持的操作系统 | Windows OS, Mac OS (不支持Windows XP) |
| 外观 | |
| 机器尺寸 | 222 x 119 x 154 mm |
| 包装尺寸 | 258 x 220 x 170 mm |
| 重量 | 净重:1.3 Kg 毛重:2.1 Kg |
| 电源 | |
| 电源功率 | 48 W |
| 输入电压 | 100V 至 240V AC |
| 电流频率 | 50/60 HZ, 单频 |
| 功耗 | 30.0 W(两块 Seagate 22TB ST22000NM001E硬盘+三块 SAMSUNG 980 NVMe M.2 SSD读写状态) |
| 8.1 W (两块 Seagate 22TB ST22000NM001E硬盘+三块 SAMSUNG 980 NVMe M.2 SSD休眠状态) | |
| 环境温度 | |
| 噪音 | 19.0 dB(A) (使用 2 个 SATA HDD/SSD 在待机状态下) |
| 麦克风放置在设备距离 1 米的位置 | |
| 背景噪音：17.3 dB(A) | |
| 工作温/湿度 | 0°C 至 40°C / 5% 至 95% RH |
| 存储温/湿度 | -20°C 至 60°C / 5% 至 95% RH |
| 认证 | CCC、CE、FCC、UL |
| 保修 | 2 年 |
| 环保与包装 | |
| 环保 | 符合 RoHS 标准 |
| 包装内容物 | ·主机 * 1 |
| ·快速安装指南 * 1 | |
| ·配件包 * 1 | |
| ·电源 * 1 | |
| ·保修卡 * 1 | |
| ·USB type-C to C线 * 1 | |
D5 Hybrid产品文档
| 名称 | 描述 | 操作 | 大小 |
| D5 Hybrid参数指南 | 中文版 | 下载 | 2.51MB |
