TerraMaster

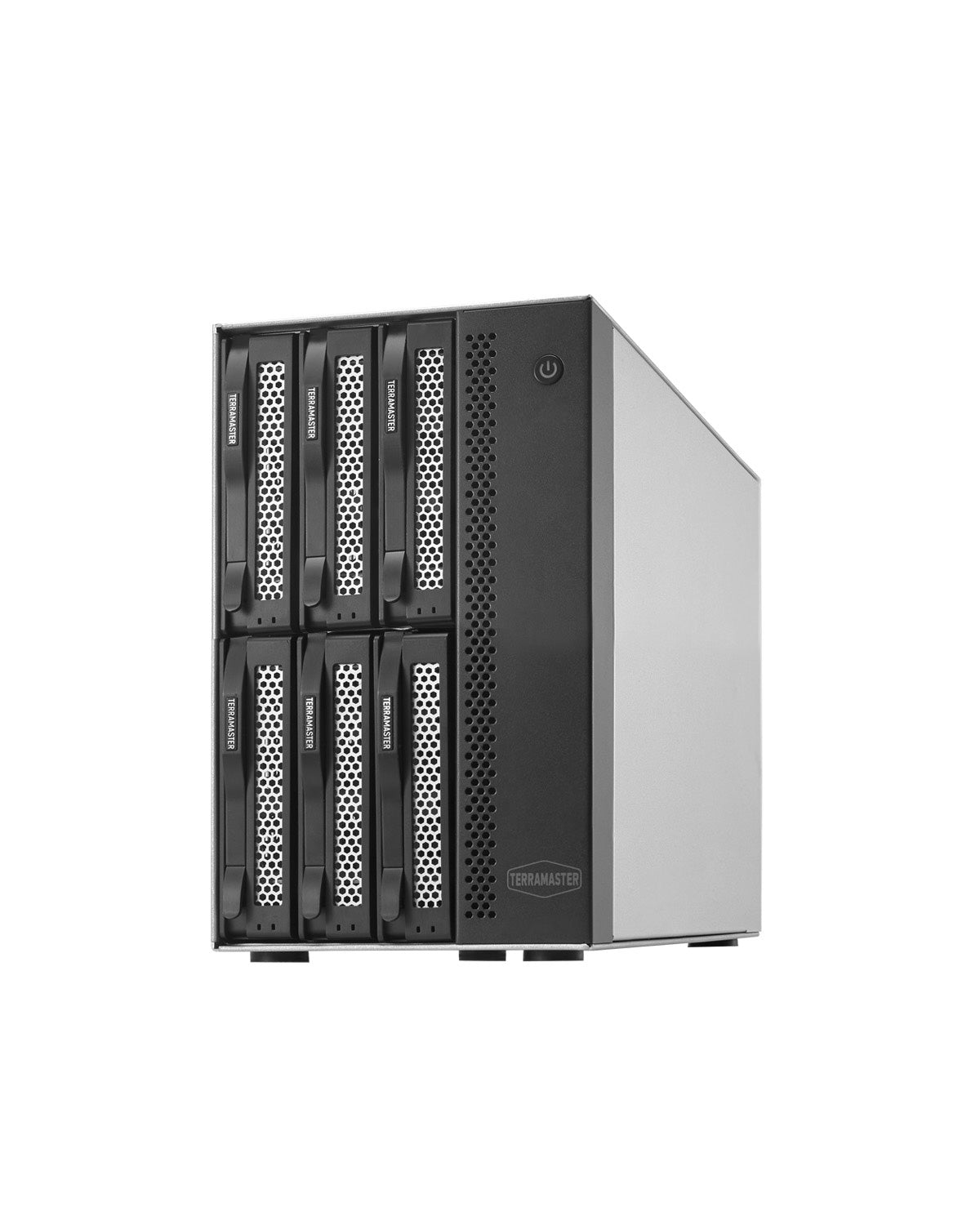

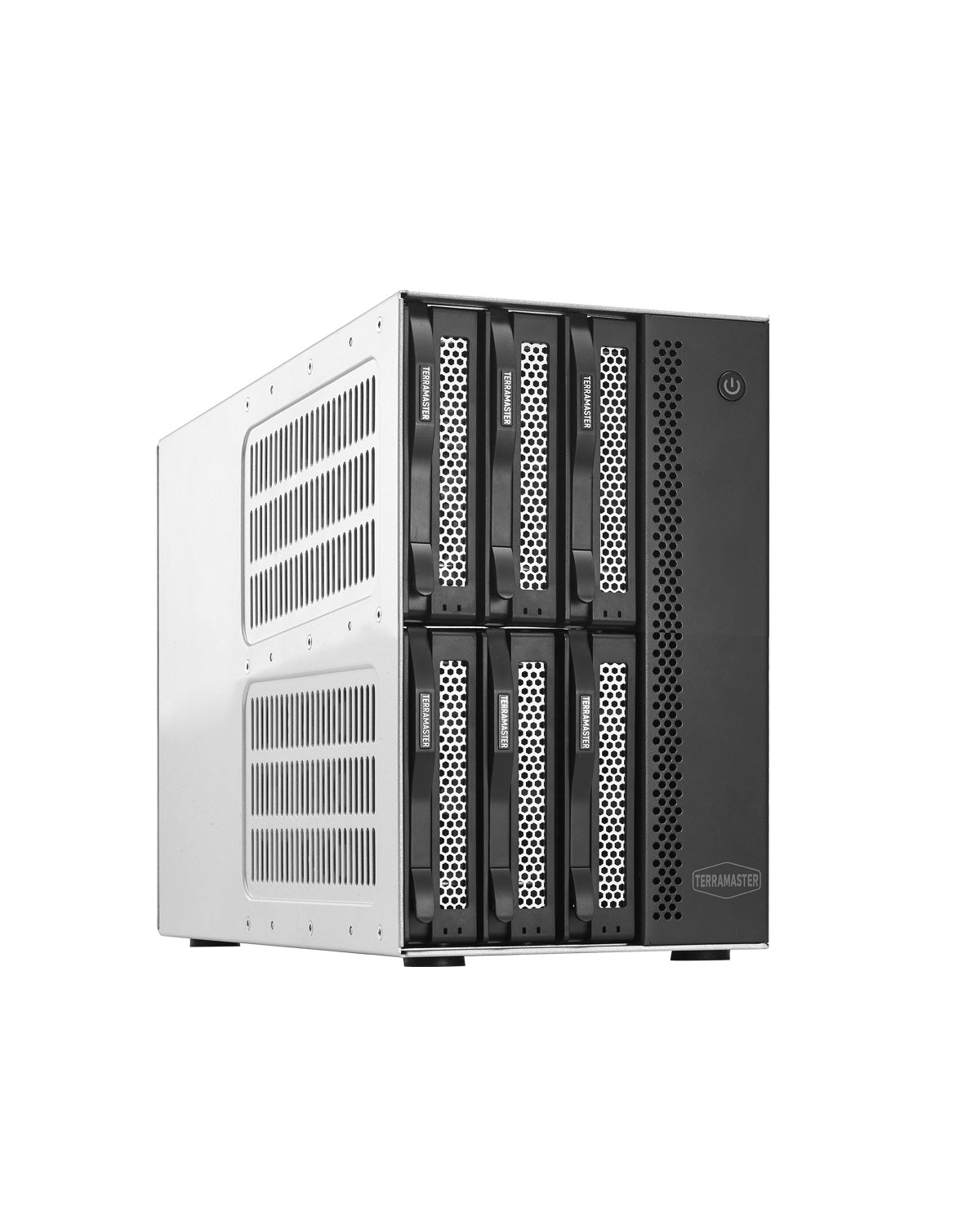

D6-320 6-Bay DAS

D6-320 6-Bay DAS

Regular price $299.99 USD
Sale price $299.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

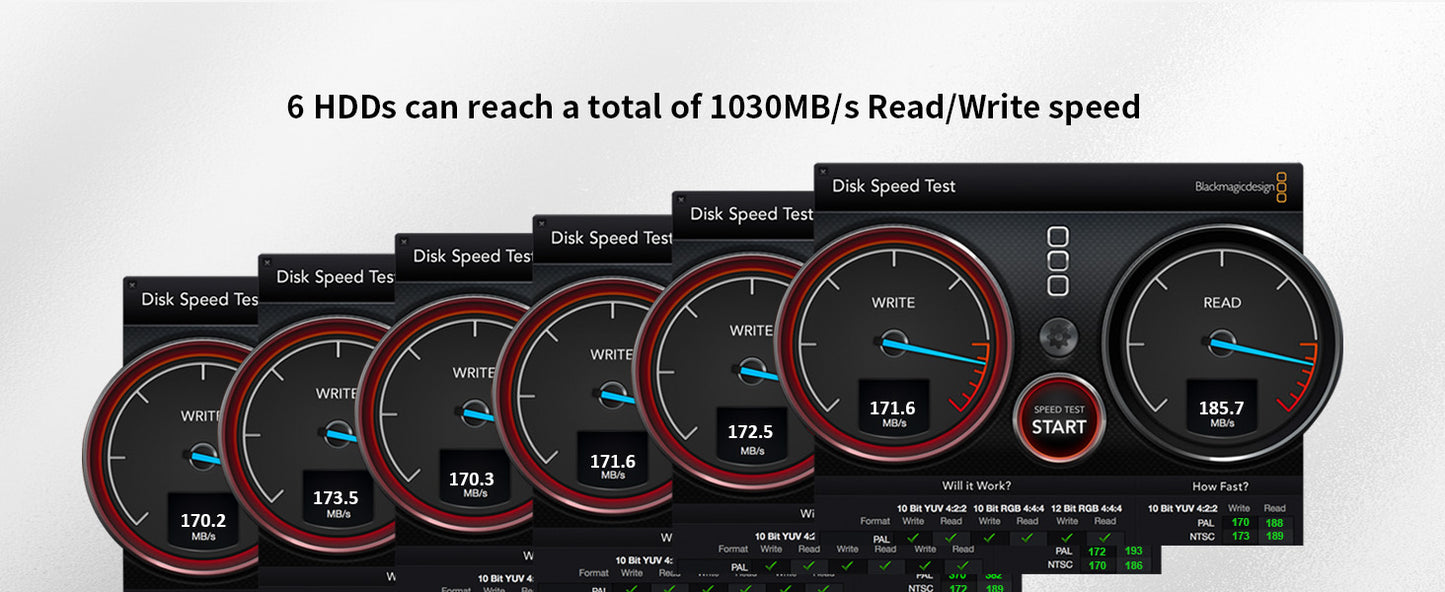

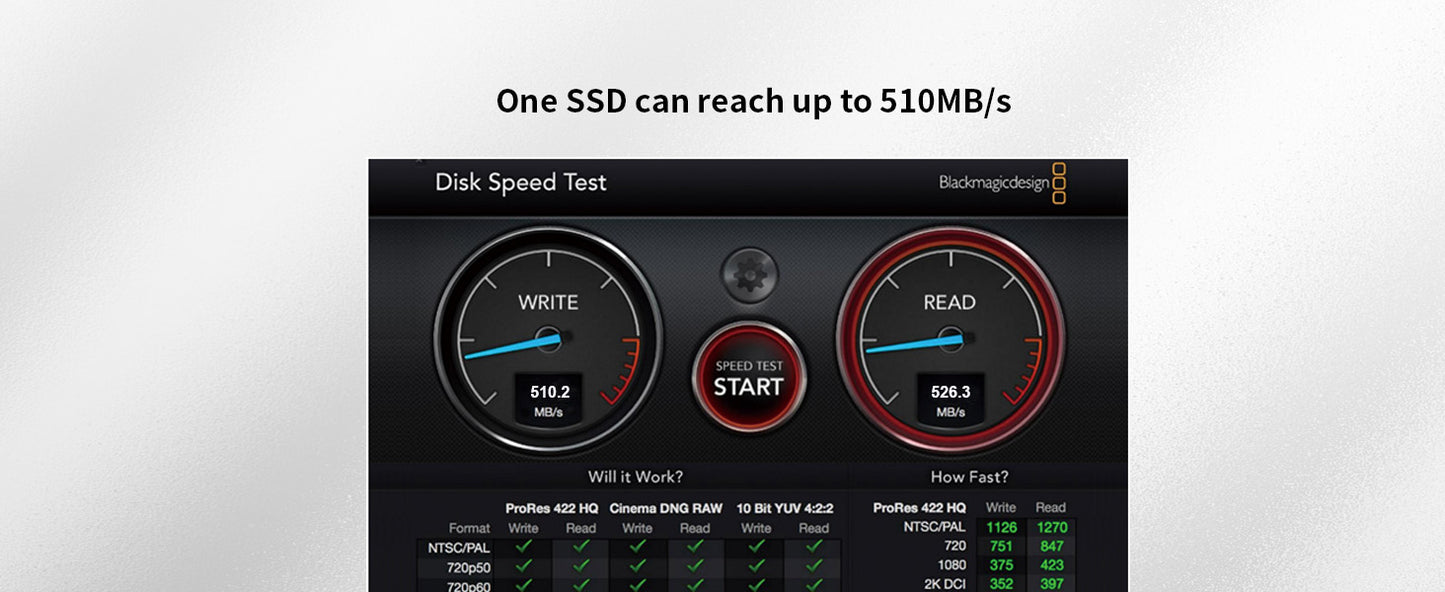

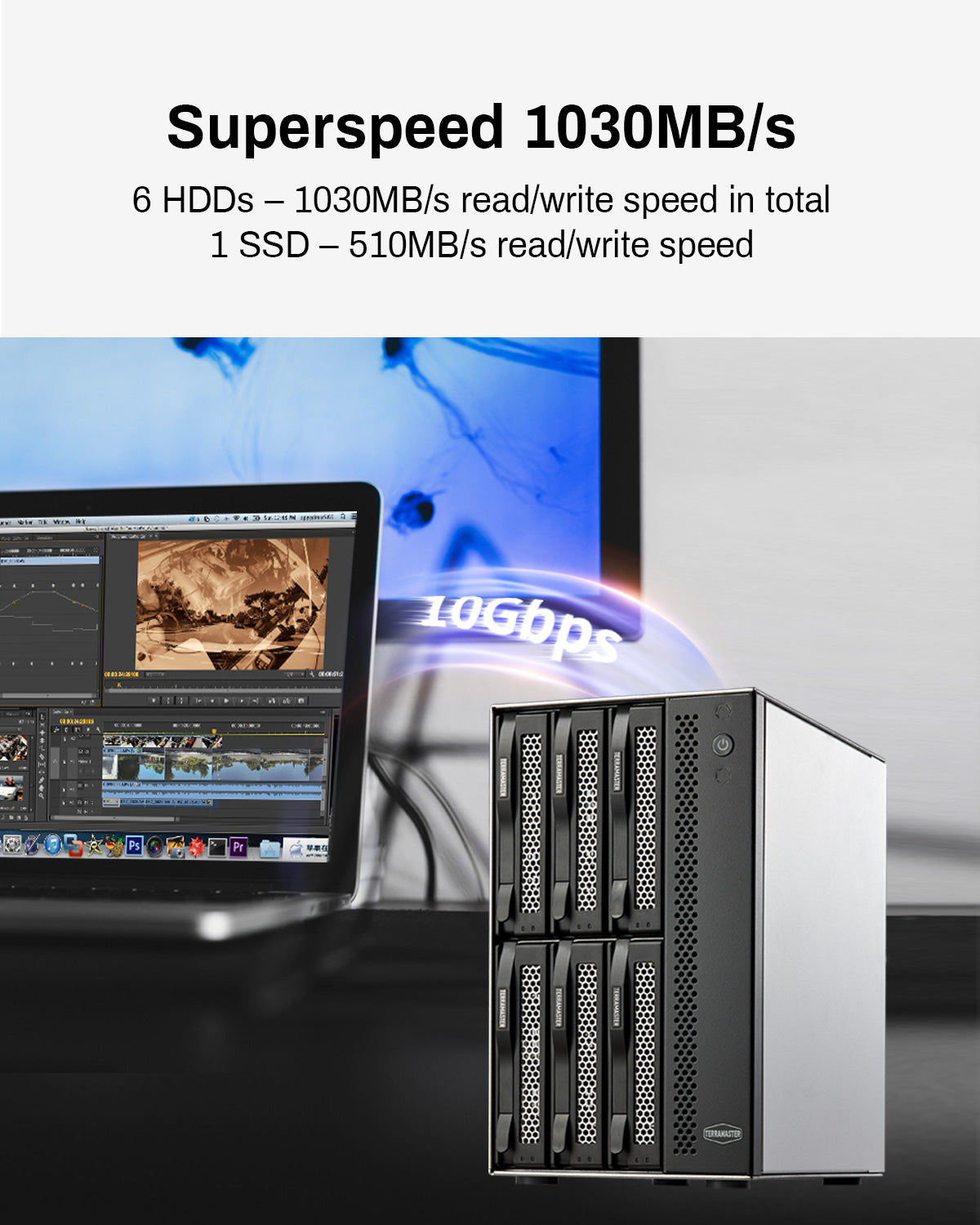

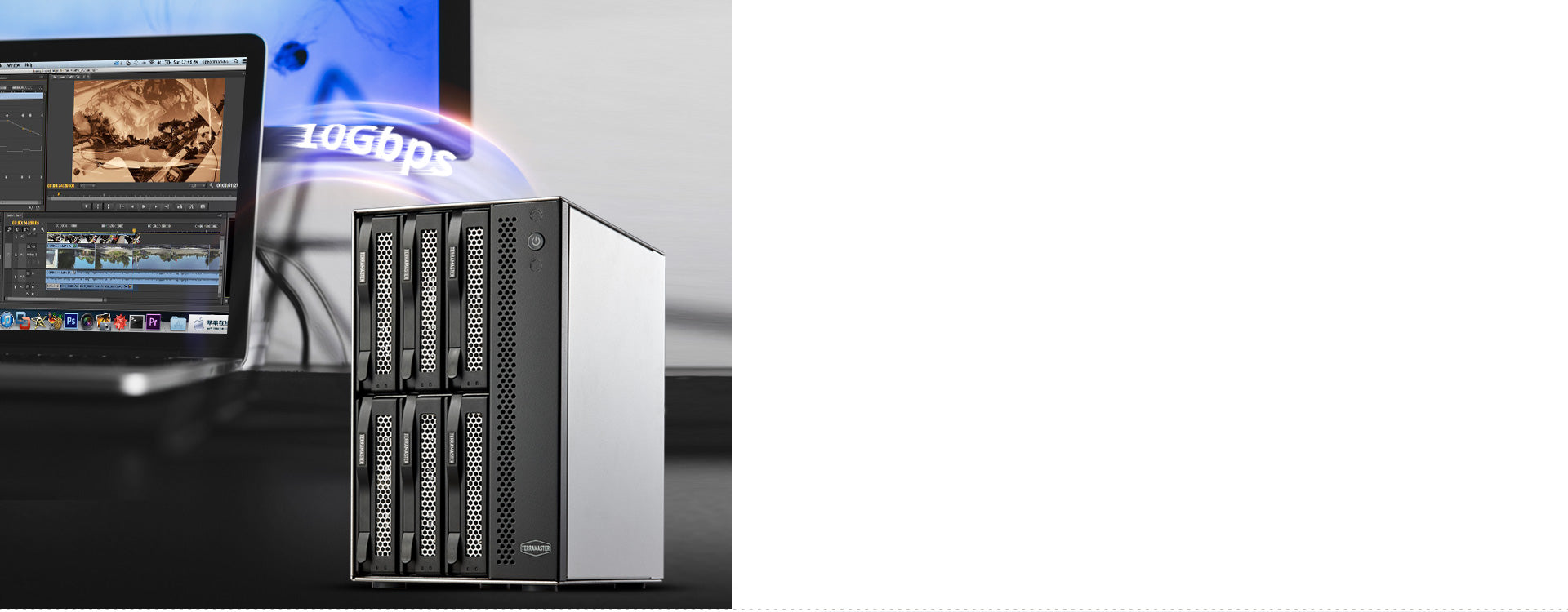

High Speed: The D6-320 hard drive enclosure adopts USB 3.2 Gen2 protocol for high-speed data transmission up to 10Gbps. With 6 hard drives installed, the read/write speed can reach up to 1,030MB/s (SATA III HDD 8TB x 6). With one hard disk installed, the read speed can reach 510MB/s (SATA III HDD 1TB SSD x 1).

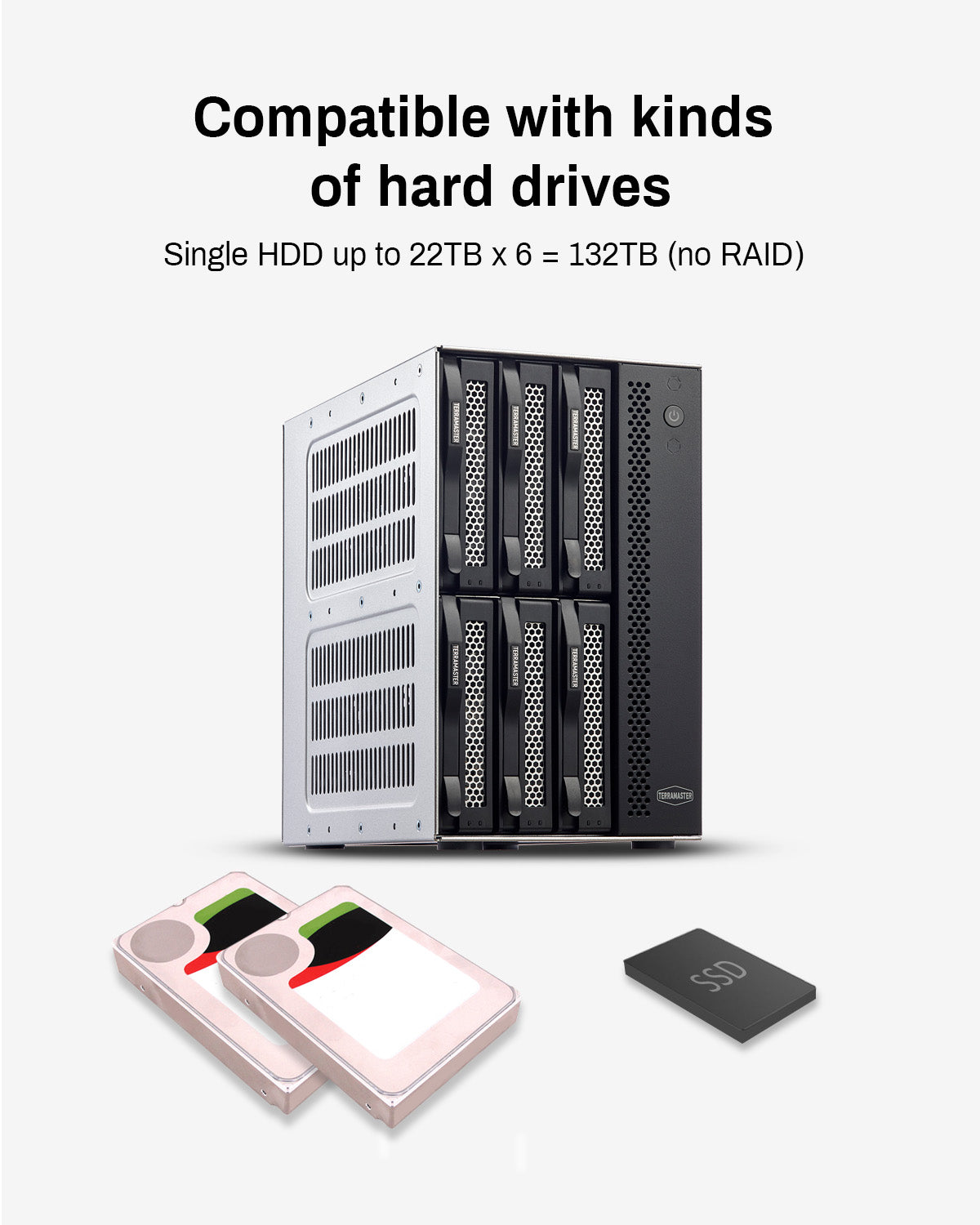

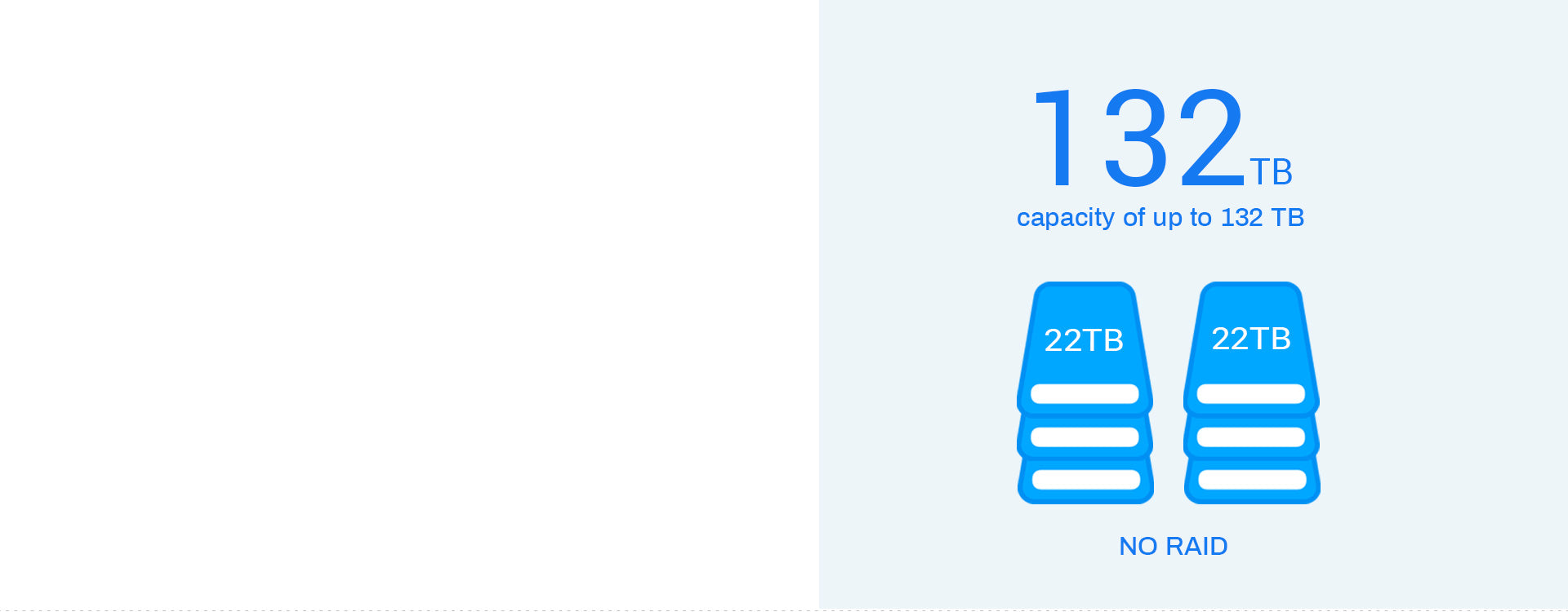

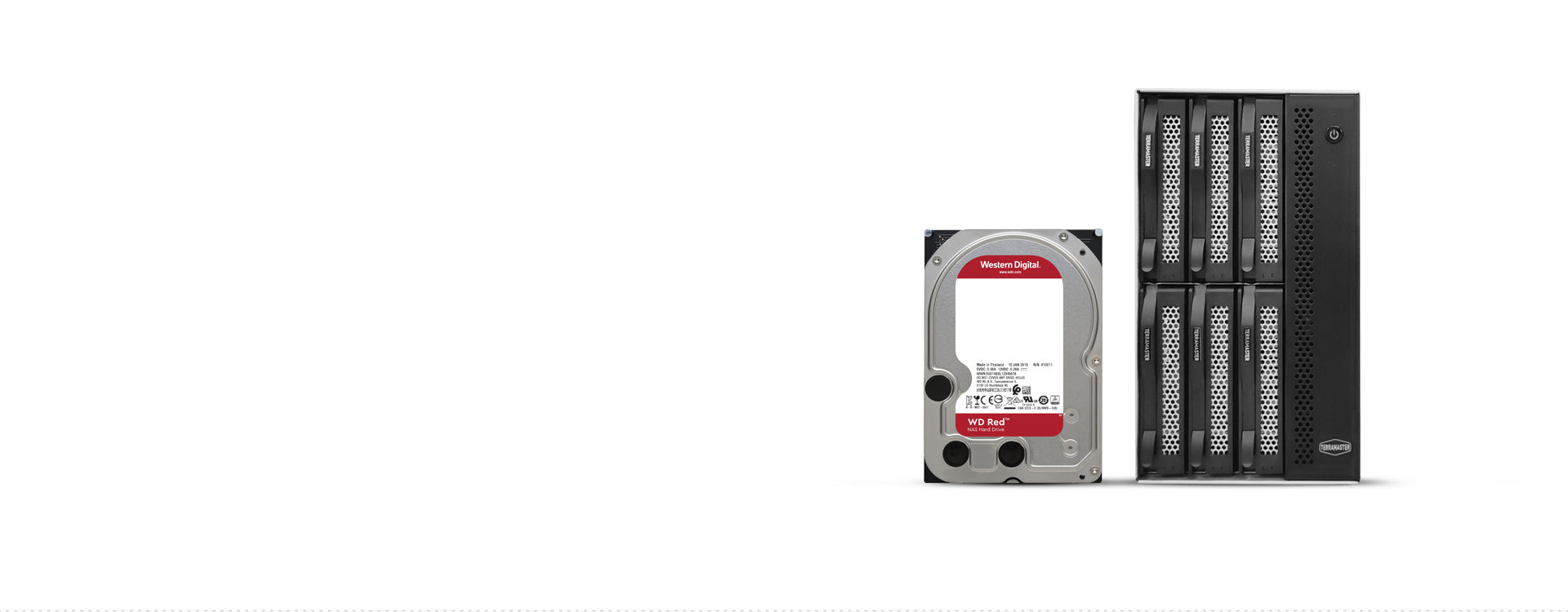

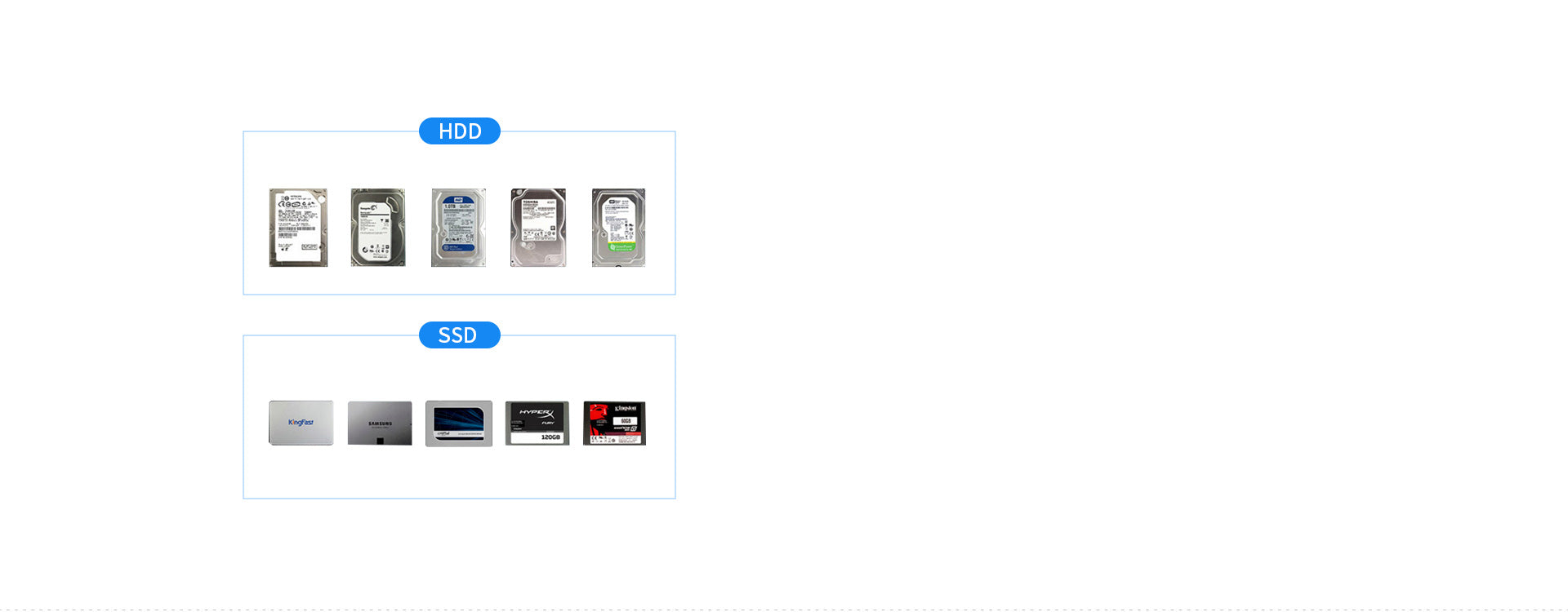

Super-large Storage Space: The D6-320 HDD storage enclosure can support up to six 3.5" and 2.5" SATA HDD, as well as 2.5" SATA SSD, with a maximum capacity of 22TB per drive, providing users with up to 132TB (22TB x 6) of storage space. Note that the D6-320 does not support arrays and only works with individual disks.

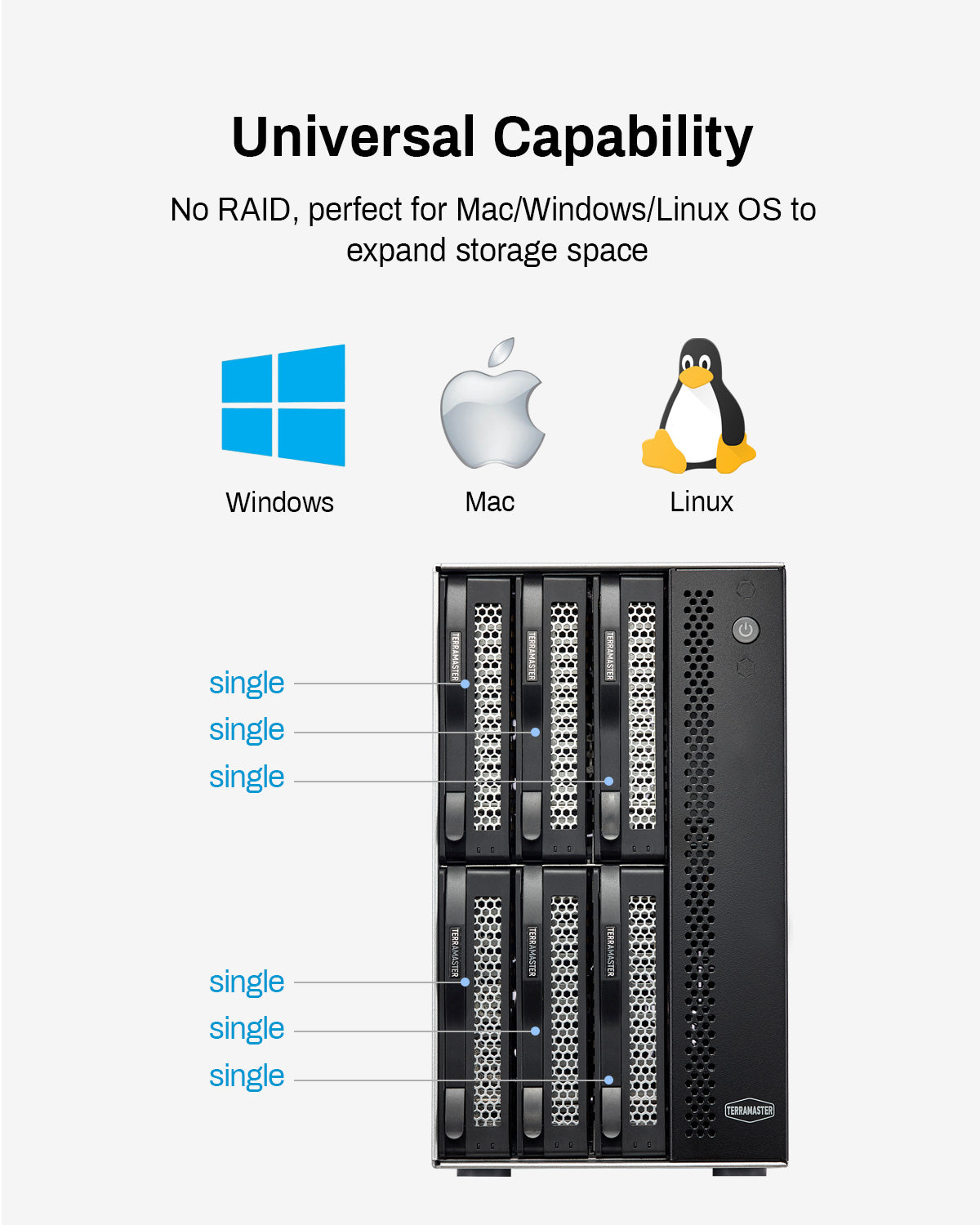

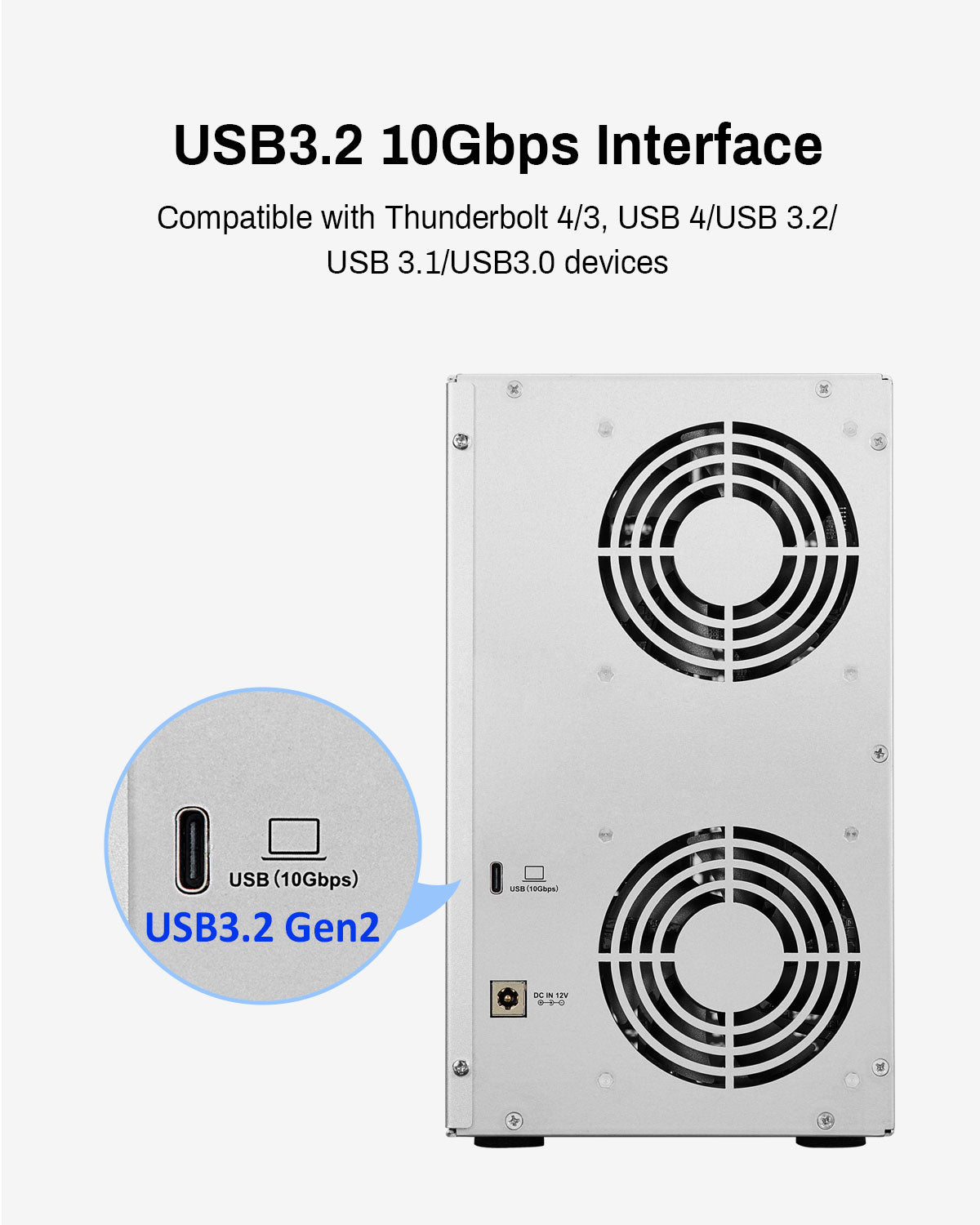

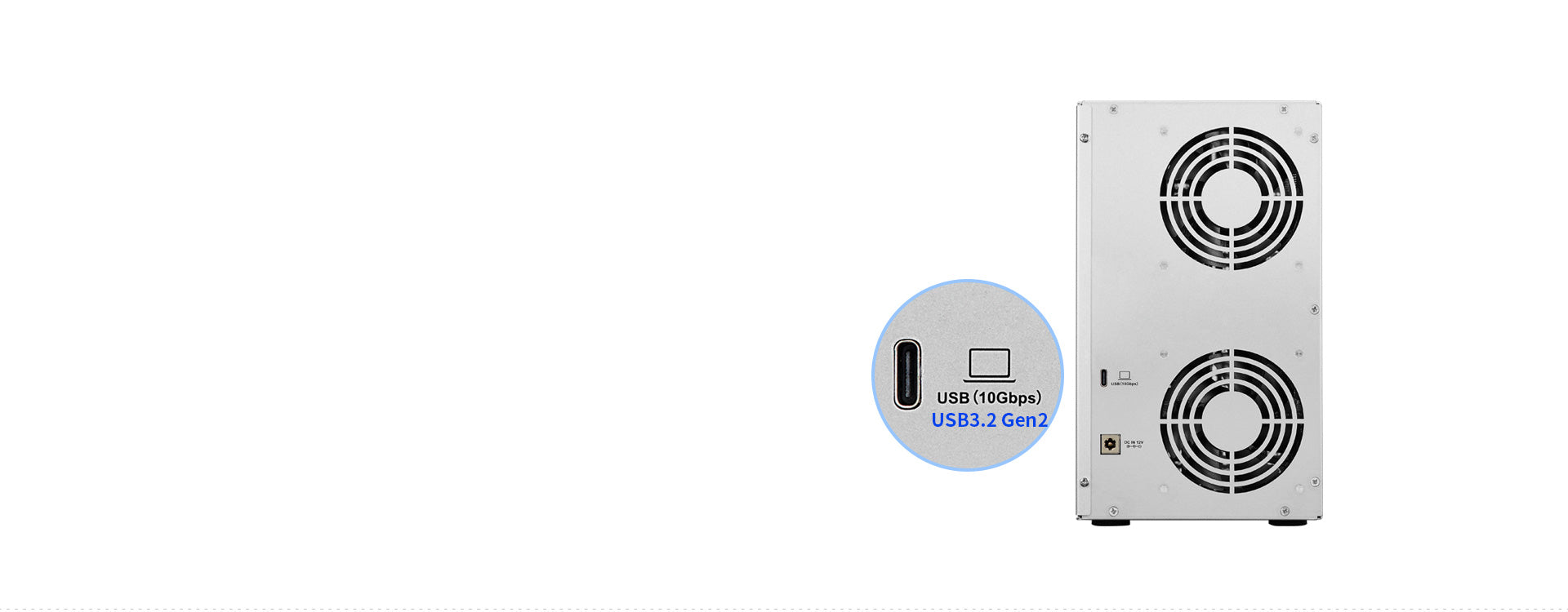

Plug and Play, Highly Compatible: The D6-320 das storage is a plug-and-play device that doesn't require drivers to work. It is highly compatible with MAC, Windows, and Linux operating systems. It has a USB Type-C interface and comes with a USB type C-type C cable. The device is compatible with various computer interfaces, including USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3, and Thunderbolt 4.

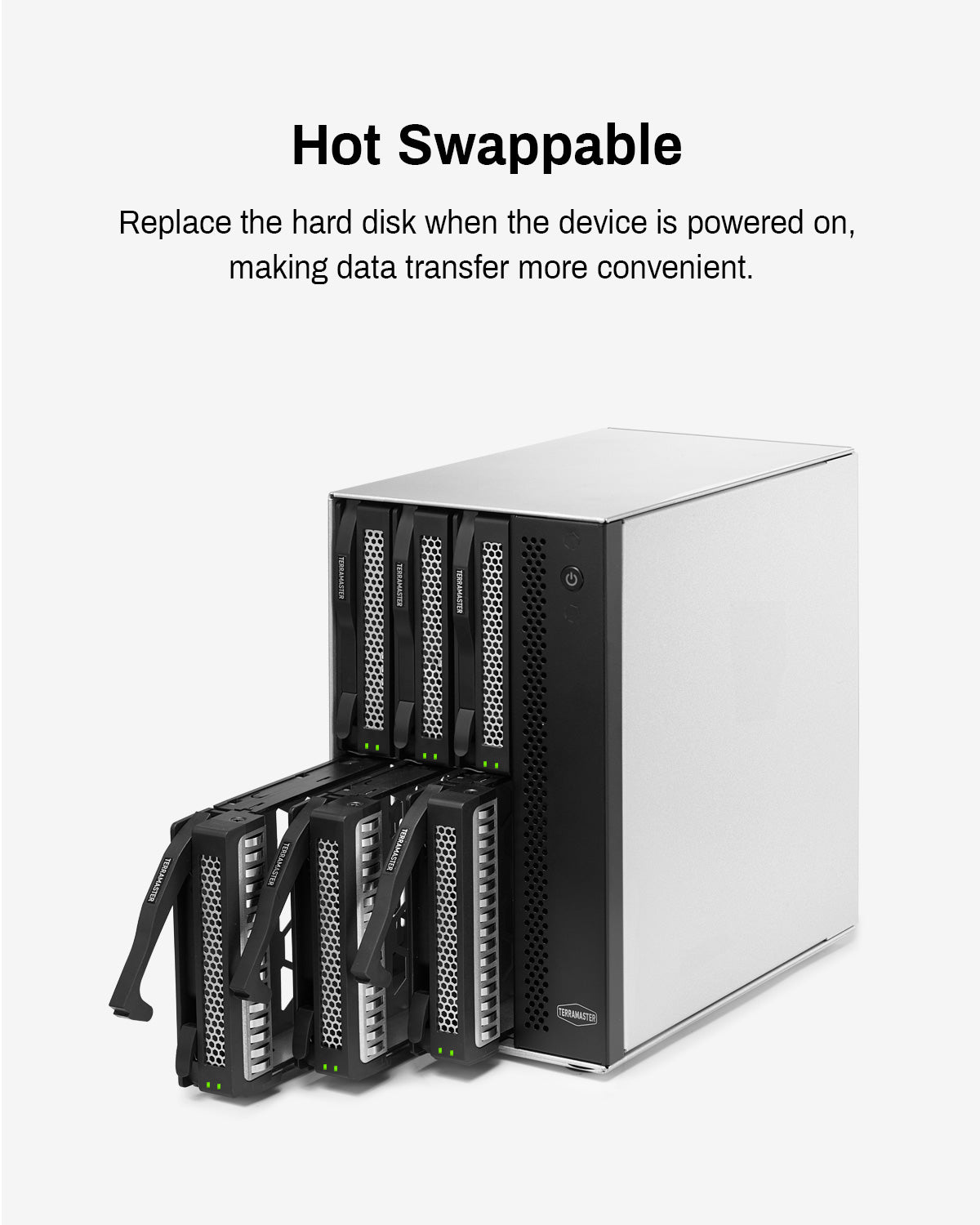

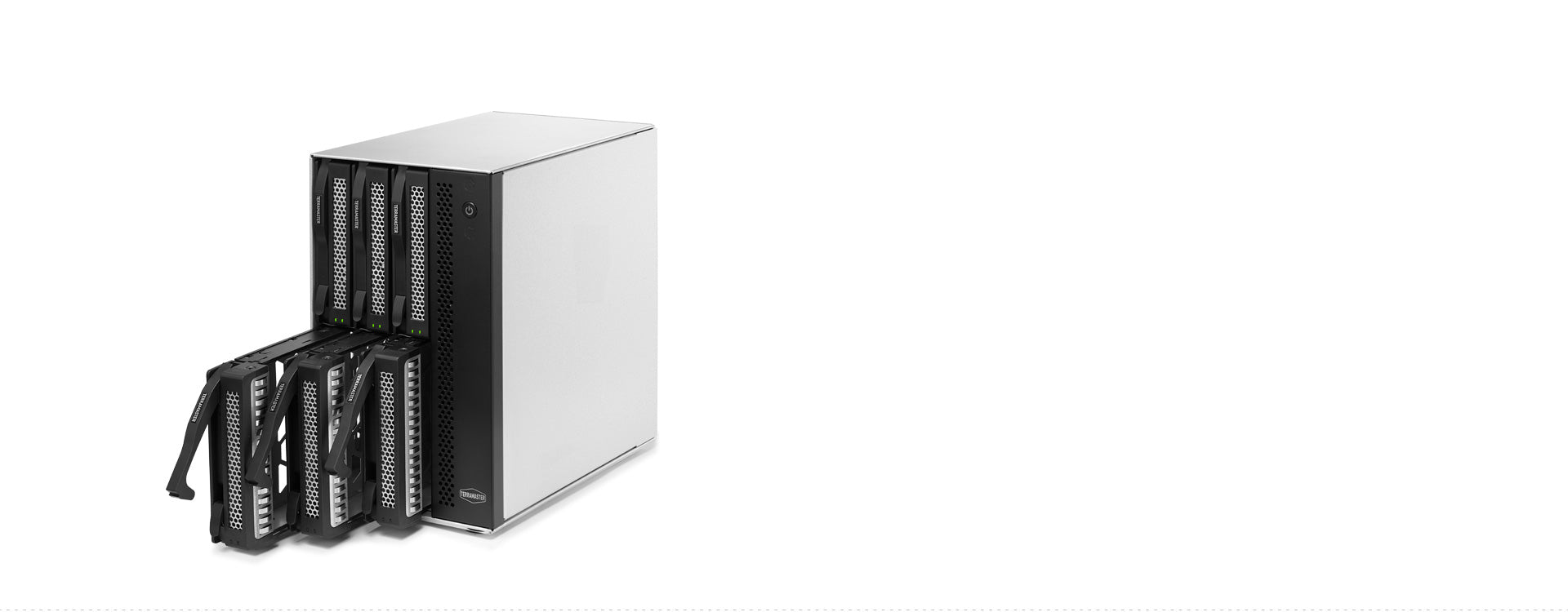

Hot Swappable: The D6-320 USB enclosure supports hot swapping, which allows you to replace the hard disk without having to power off the device. This feature makes data transfer more convenient and efficient.

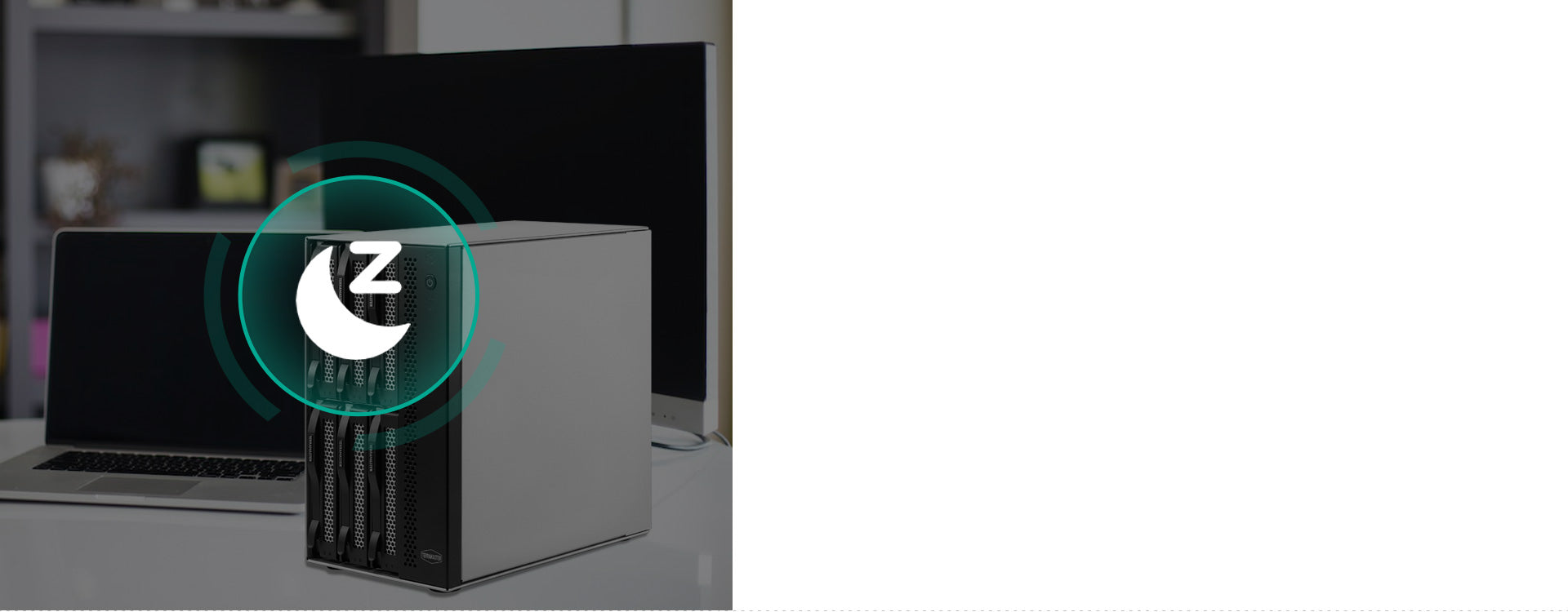

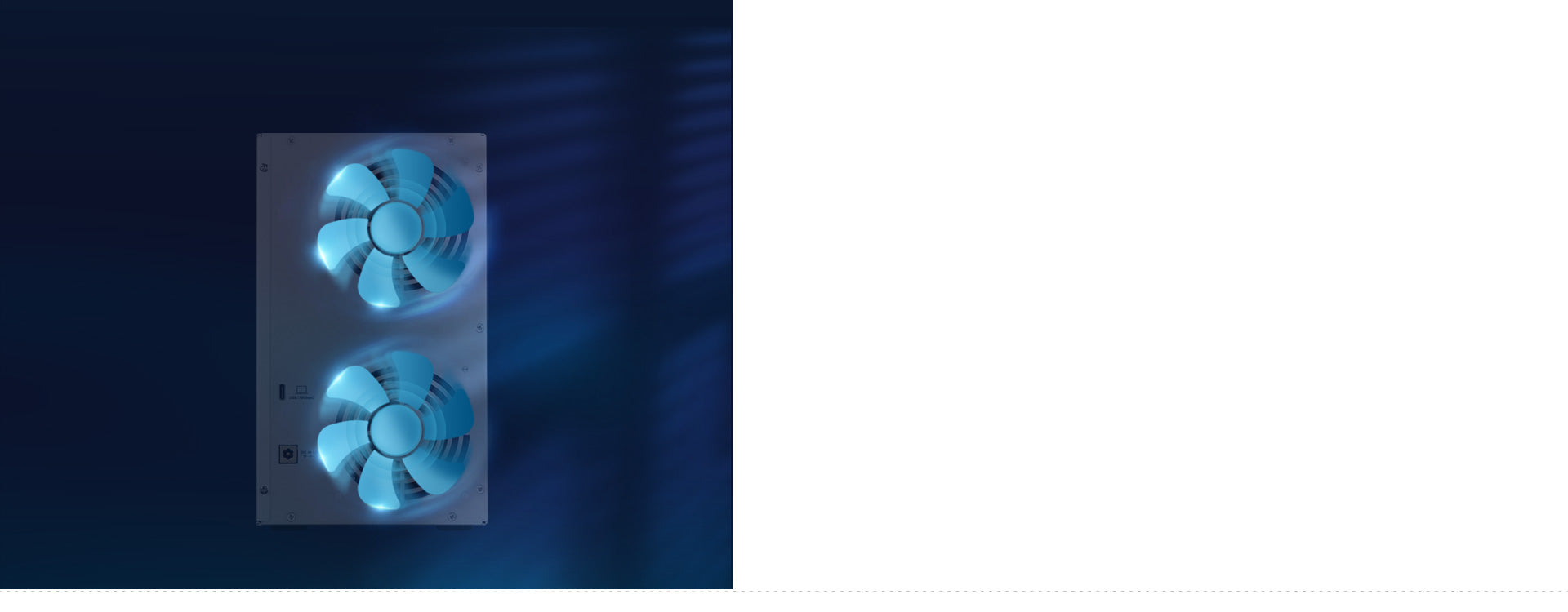

Better Heat Dissipation: The D6-320 USB storage has an intelligent temperature-controlled and low-noise fan that automatically adjusts its speed based on the temperature of the hard disk. This feature ensures that the hard disk operates at its best temperature and provides better heat dissipation.

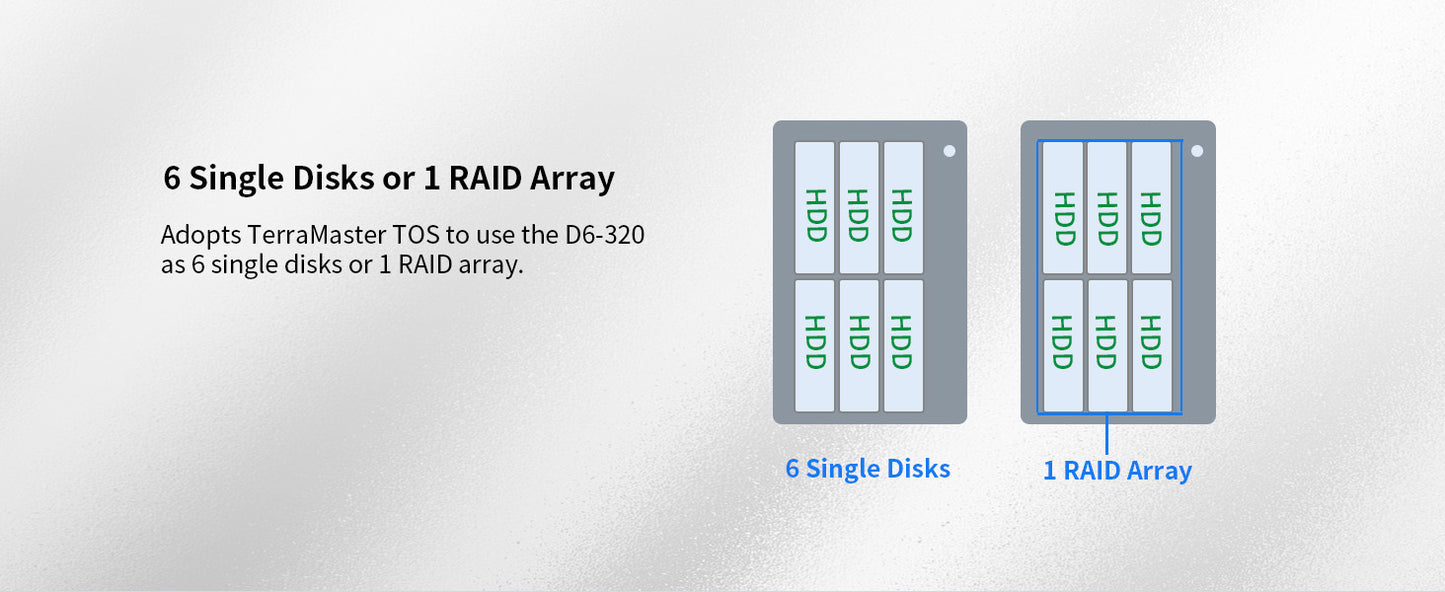

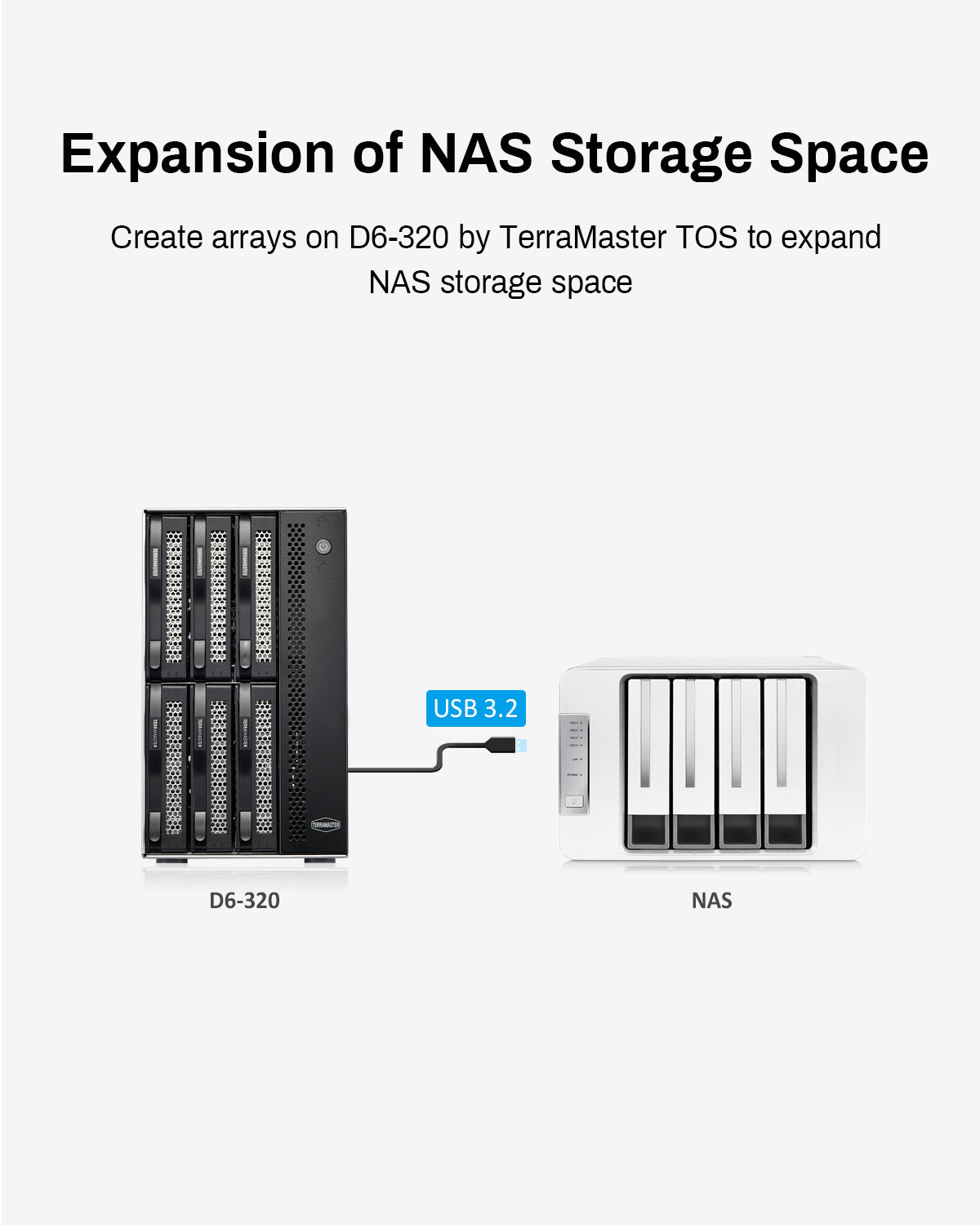

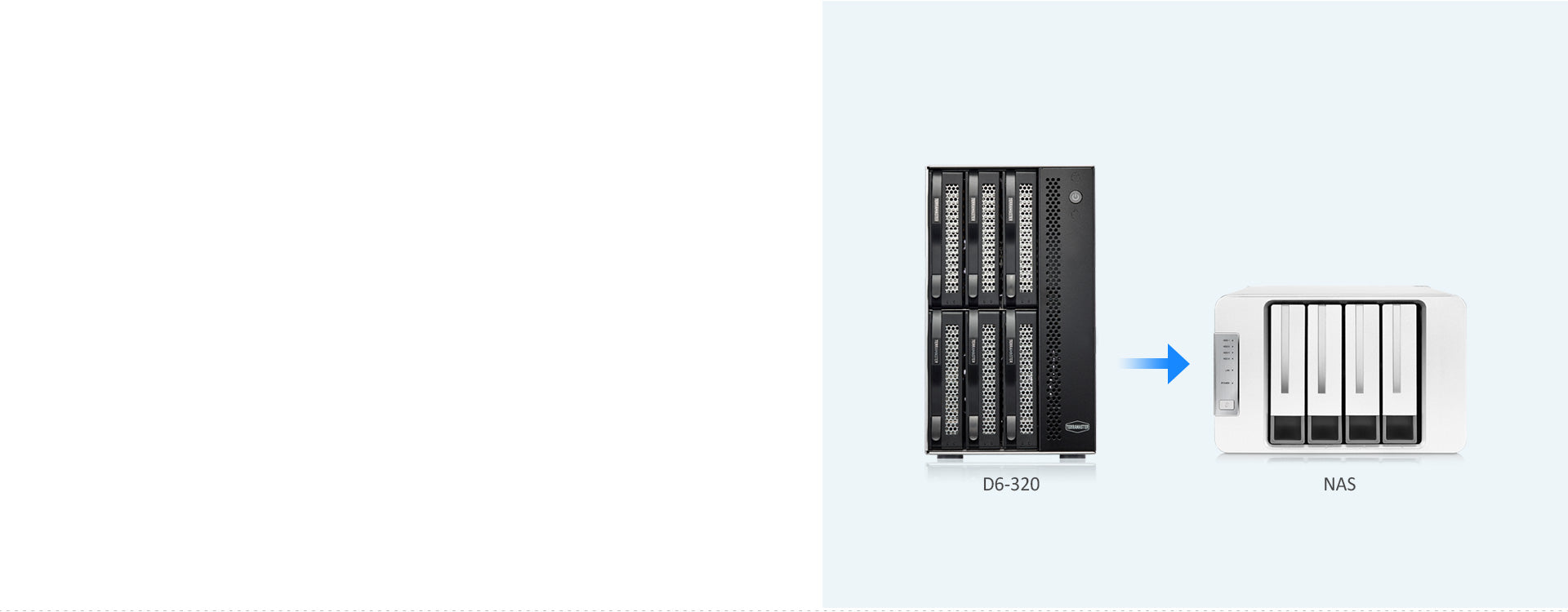

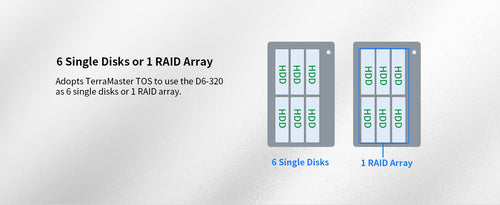

Expansion of NAS Storage Space:The D6-320 DAS storage is compatible with TerraMaster NAS via USB interface with proper adaptation. Users can expand the NAS storage space by creating arrays and storage pools on D6-320 through TerraMaster TOS. Note: this feature requires TerraMaster NAS with TOS 5.1 or later version.

View full details

Features

参数

D6-320参数

硬件
存储设备
硬盘数量 6
兼容硬盘类型 3.5英寸 SATA硬盘
支持磁盘阵列类型 SINGLE
储存容量可达 132 TB (22TB HDD * 6)
外接端口
数据传输接口 USB type-C x 1
数据传输接口速率 USB3.2 10Gb
数据传输线 USB type-C TO C
文件系统
硬盘格式 NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
读写速度(单盘) 读:520MB/  写:500MB/秒 (使用SSD
读写速度(6个盘同时读写) 1016MB/
操作系统
支持的操作系统 Windows OS, Mac OS, Linux (不支持Windows XP)
外观
机器尺寸 226 x 130 x 218   mm
包装尺寸(高 * 宽 * 深度) 325 x 210 x 282  毫米
重量 净重: 3.4 Kg  毛重: 4.9 Kg

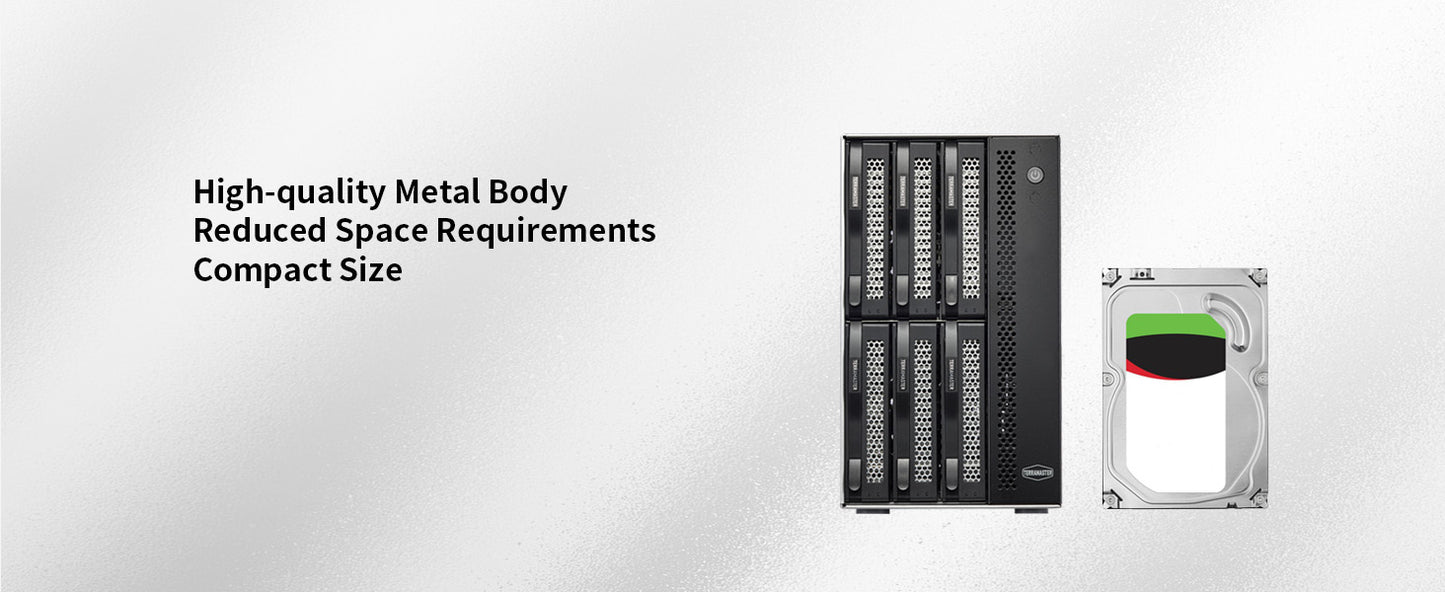

外壳材质 金属材质
电源
电源功率 120 W
输入电压 100V  240V AC
电流频率 50/60 HZ, 单频
环境温度
工作温/湿度 0°C  40°C / 5%  95% RH
存储温/湿度 -20°C  60°C / 5%  95% RH
认证  CCCCEFCCUL
保修
环保与包装
环保  符合 RoHS 标准
包装内容物  ·主机 * 1
·快速安装指南 * 1
·配件包 * 1
·电源 * 1
·电源线 * 1
·USB type-C to C线 0.8米 * 1;USB type-A to C线 0.8米 * 1

D6-320产品文档

名称 描述 操作 大小
D6-320参数指南 中文版 下载 3.09MB
