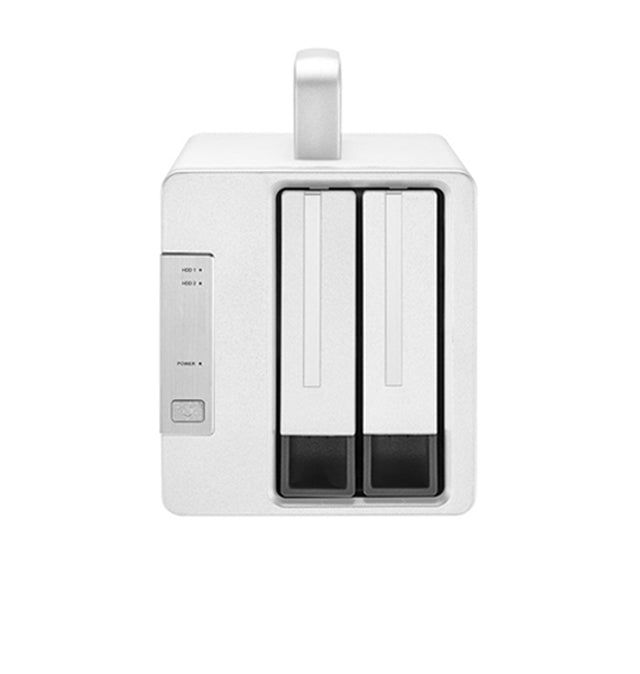

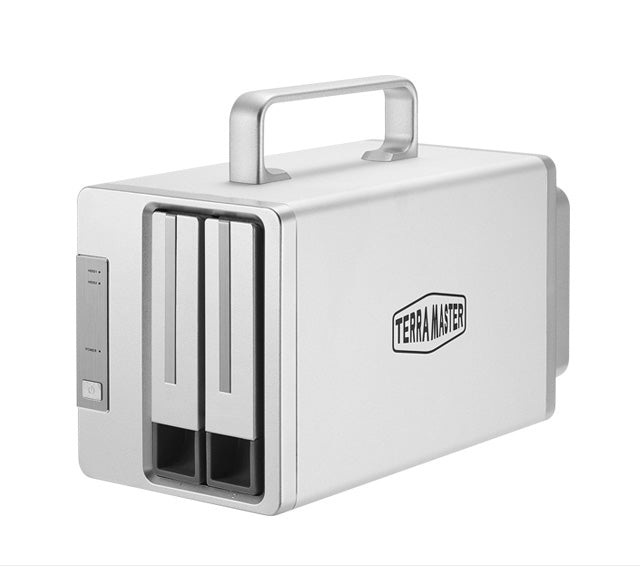

TD2 Thunderbolt 3

TD2 Thunderbolt 3

常规价格 $259.99 USD
促销价 $259.99 USD 常规价格
售罄
结账时计算的运费

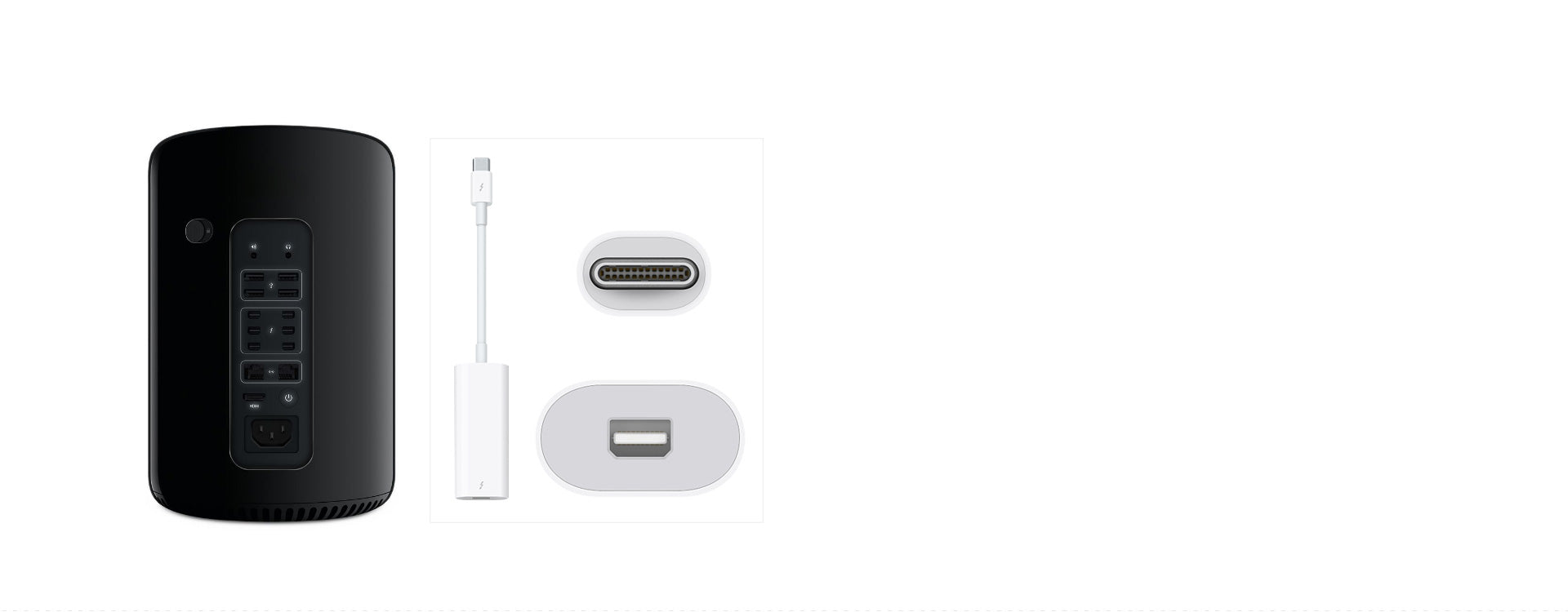

1. 便携设计,专为专业人士打造:尤其适合对速度与安全性有严苛要求的用户,包括 4K 视频剪辑场景。自 2021 年 3 月 26 日起,已全面支持搭载 M1 安全芯片的 Mac 设备。

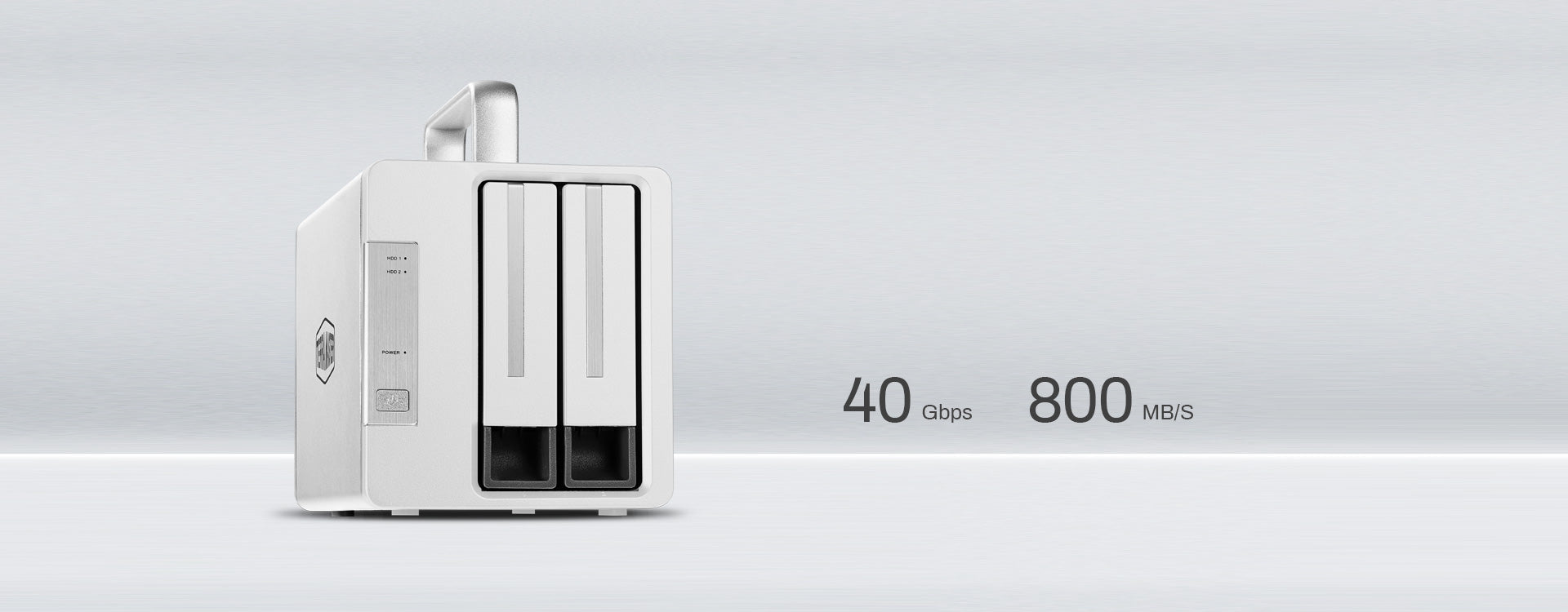

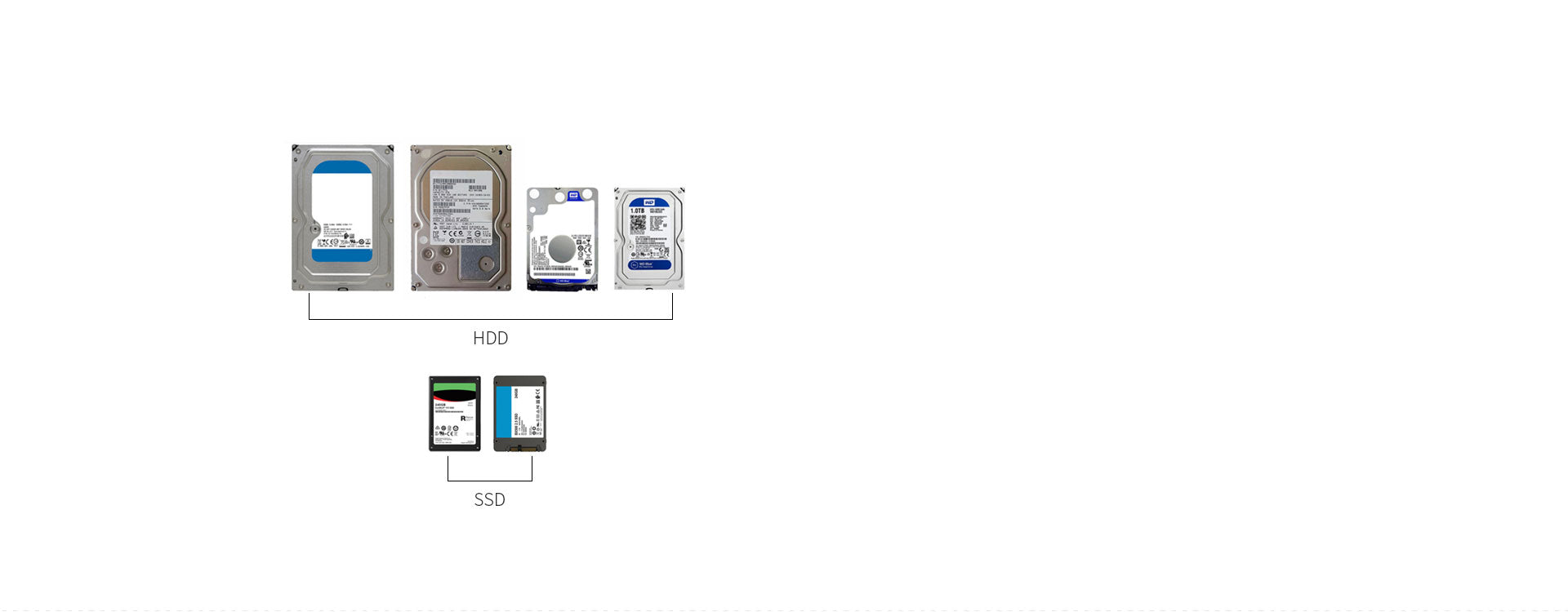

2. 双 40Gbps 雷电 3 接口:读取速度最高可达 760MB/s(使用 SSHD 组建 RAID 0 时)。兼容 3.5" 与 2.5" SATA 机械硬盘,以及 2.5" SATA 固态硬盘。

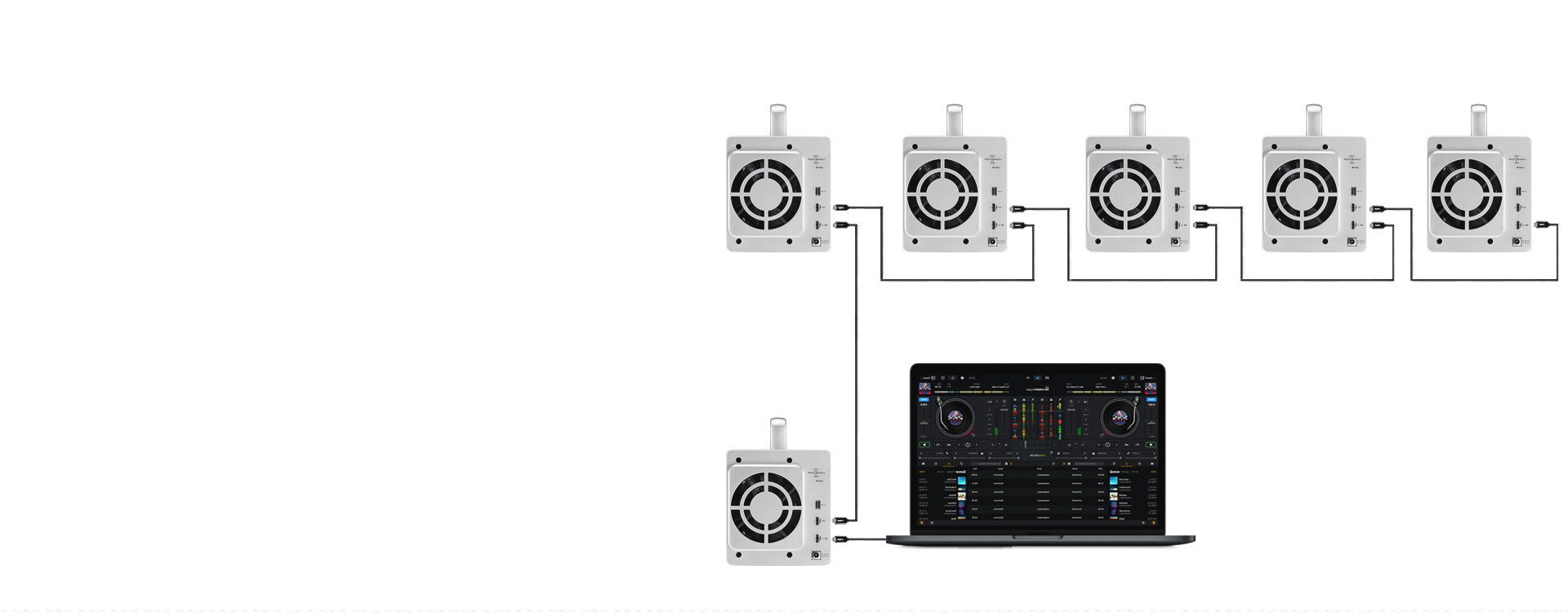

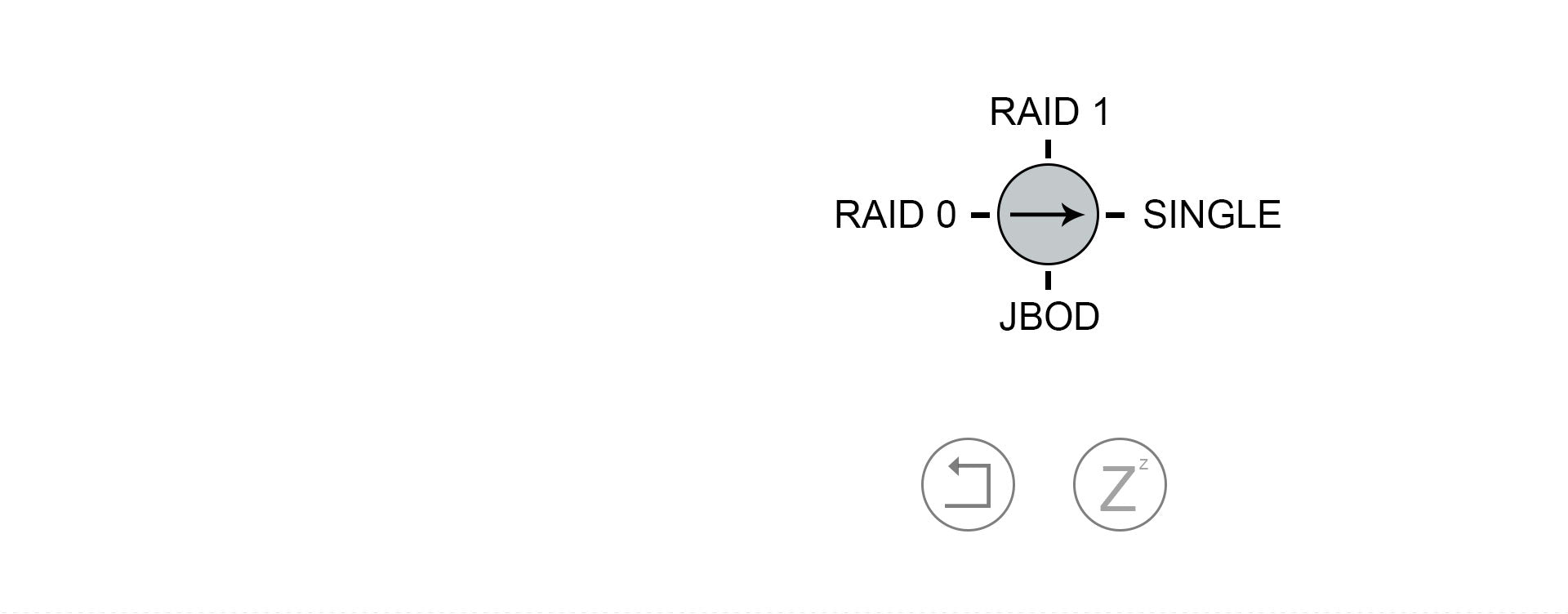

3. 硬件 RAID 功能:支持 RAID0、RAID1、JBOD、SINGLE 模式;最高支持 40TB 存储容量(20TB × 2,RAID 0 配置);可串联最多 6 台设备。

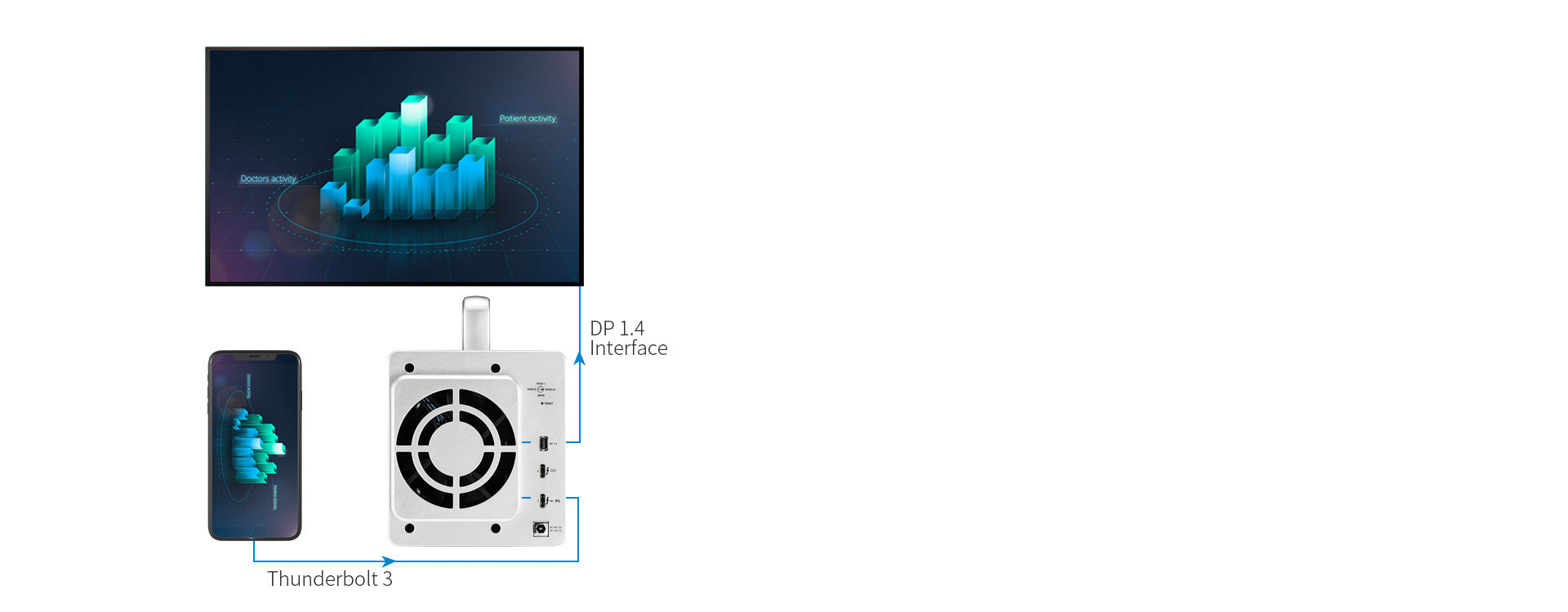

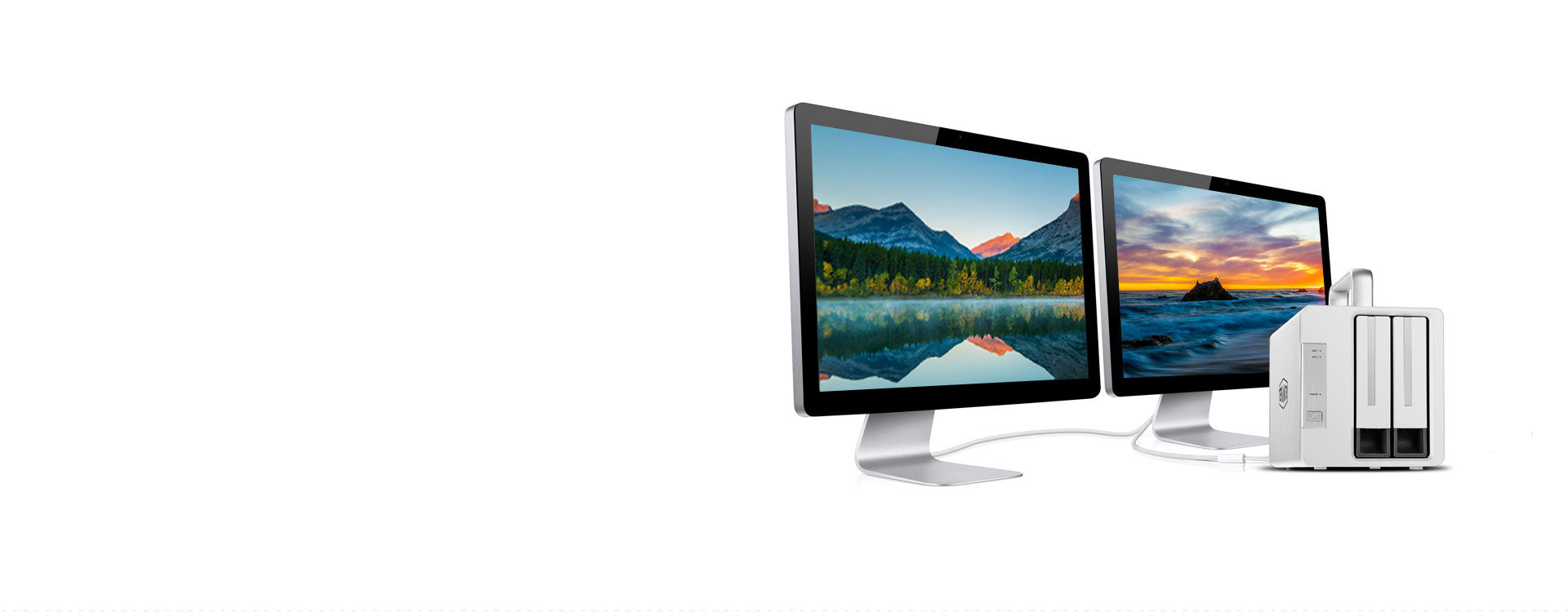

4. 多屏显示支持:借助雷电 3 与 DisplayPort 接口,TD2 Thunderbolt 3 可支持多达 3 块屏幕的多屏显示。

5. 供电与散热设计:可为兼容的笔记本电脑提供最高 15W 充电功率(仅限 Mac,不支持 Windows)。采用铝合金外壳,配备 80mm 风扇,确保高效散热。

查看完整详细信息

特色

参数

TD2 Thunderbolt3 Specification

Storage
Disk Slot Number 2
Compatible Disk Types 3.5" SATA HDD
  2.5" SATA HDD
  2.5" SATA SSD
File System NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity 36TB (18 TB drive x 2) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,JBOD,RAID 0,RAID 1
Hardware RAID
RAID Manager Software /
RAID Manager Software Language /
RAID Online Expansion /
RAID Migration /
RAID Auto-rebuilding
Drive Hot Swap
HDD Sleep
HDD S.M.A.R.T. Inspection /
Sector Inspection and Parity Check /
SSC Cache /
Daisy Chain /
HDD NCQ Technology /
Alert Notice /
Event Log /

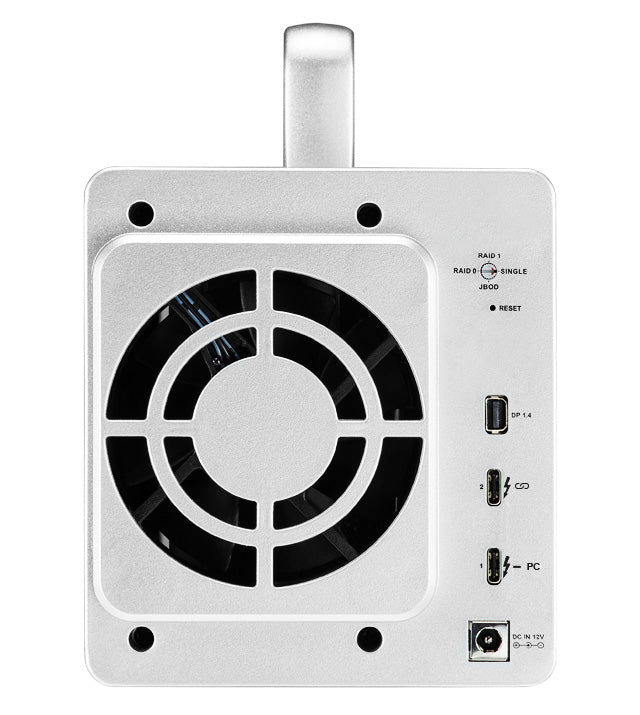

External Ports
USB /
Thunderbolt 40Gb Thunderbolt 3 x 2
DP Interface DP 1.4 x 1
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read: 810MB /sec , (Use SSD under RAID 0 mode)
Read: 521MB /sec , (Use HDD under RAID 0 mode)
Writing Speed (max.) Write: 806MB /sec, (Use SSD under RAID 0 mode)
Write: 506MB /sec, (Use HDD under RAID 0 mode)

Appearance
Size (H*W*D) 227 x 119 x 173 mm
Packaging Size (H*W*D) 258*220*200 mm
Weight Net Weight: 1.4Kg  Gross Weight: 2.2Kg
Others
System fan 80 mm x 80 mm x25mm (x 1)
Fan mode Smart
Noise Level 18.6dB(A)
Power Supply
Power Supply  90W
AC Input Voltage 100V - 240V AC
Current Frequency 50/60 Hz, single frequency
Power Consumption 65.6W
Environment Temperature
Working Temperature 5°C  ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS、Mac OS、Linux
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents: Host unit (x1)
  Power cord (x1)
  Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1)
  Quick Installation Guide (x1)
  Power adapter (x1)
  Screws (several)
  Limited Warranty Note x 1
