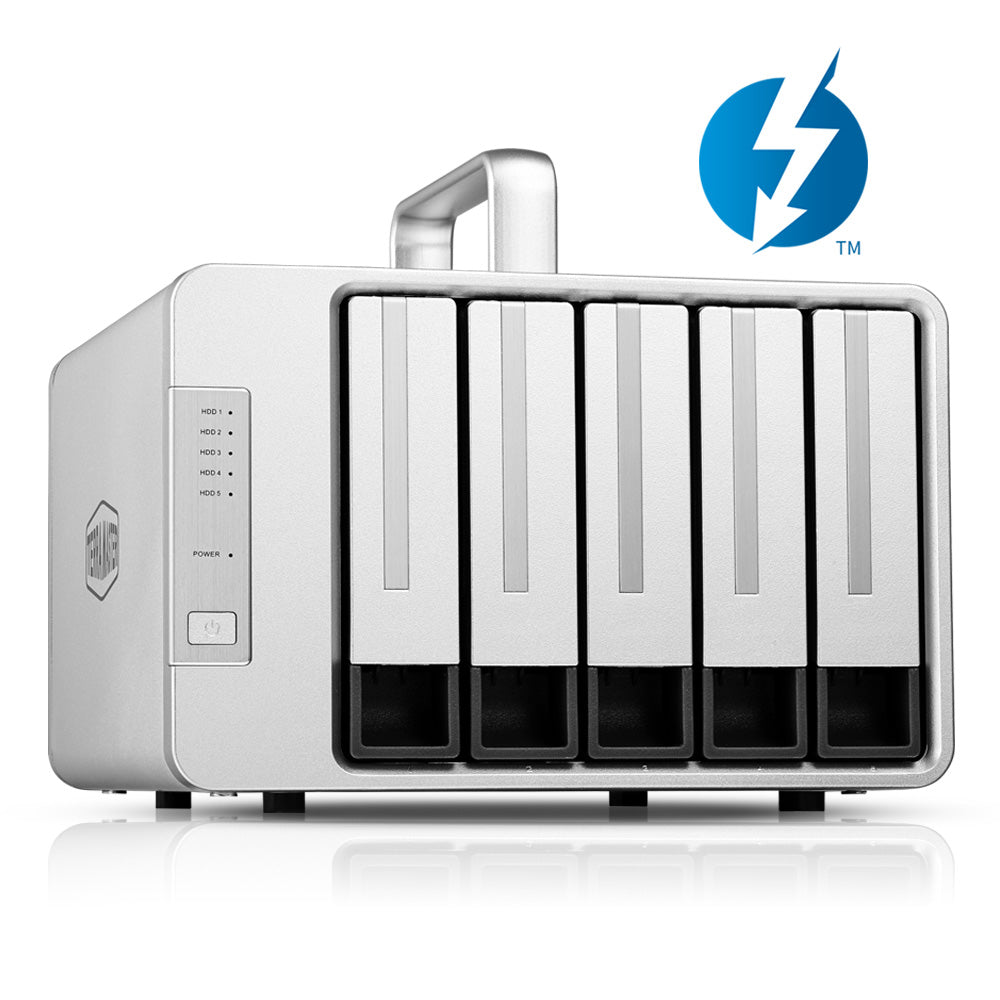

TERRAMASTER D5 Thunderbolt 3 Professional-Grade 5-Bay External Hard Drive Enclosure RAID 0/RAID1/RAID5/RAID10/JBOD Hard Disk RAID Storage (Diskless).

TerraMaster

D5 Thunderbolt 3

Name: D5 Thunderbolt 3
Brand: TerraMaster
SKU: 000-D5330-FBA001-2000
Price: 799.99 USD
Availability: OutOfStock

D5 Thunderbolt 3

$799.99 USD

$799.99 USD ~~$799.99 USD~~

促销售罄

结账时计算的运费。

铁威马 D5 Thunderbolt 3 RAID 存储 - 更强大，更快。

铁威马 D5 Thunderbolt 3 RAID 存储配备两个 Thunderbolt 3 接口，使用户能够以 USB3.0 8 倍的速度连接任何 USB 设备，同时支持完整的 4K 视频性能。

使用硬件 RAID 提升性能

软件 RAID 会消耗计算机系统大量资源，影响其他任务的效率。此外，意外断电还会给备份的软件 RAID 带来巨大的数据损坏风险。铁威马 D5 Thunderbolt 3 配备专业级硬件 RAID 和板载闪存，提供更快、更高效的备份和恢复功能，从而提升性能并提供额外的故障保护。

菊花链最多可连接 6 台设备（仅限 Mac，不支持 Windows）

D5 Thunderbolt 3 充分利用 Thunderbolt 3 和 DP 接口，支持最多 3 台显示器的多屏显示，或菊花链连接多达 6 台设备。对于多任务处理者来说，这无疑是理想的解决方案，尤其是在追求效率的情况下。具备菊花链功能的 Thunderbolt 2 设备也可以通过菊花链连接到 D5 Thunderbolt 3。

注意：菊花链在 Mac 上兼容良好，但 Windows 存在兼容性问题并且可能会崩溃。

要使用该设备，您的系统应满足以下要求：

操作系统：64位Windows 8/10或更高版本；MAC OS X 10.12或更高版本；
硬件要求：CPU Intel i5 四核或更高；
内存：最低4GB；
接口：Thunderbolt 3 或 2；如果您的设备只有 USB 端口，则不兼容。
适用硬盘：3.5英寸SATA企业级硬盘、SSHD混合硬盘、NAS硬盘（SATA III以上）、或2.5英寸SSD（SATA II以上）。

所有专业人士的理想伴侣

专业、安全

对所有专业人士来说，更换丢失的内容既不方便，又成本高昂，最终也难以实现。因此，TerraMaster 推出 D5 Thunderbolt 3，采用先进的存储技术，确保数据安全无虞。现在，用户无需再担心数据保护不力，可以专注于重要的事情。

大容量存储

TerraMaster 的 5 盘位 D5 Thunderbolt 3 兼容 3.5 英寸 SATA 硬盘和 2.5 英寸 SSD，使专业人士能够充分利用高达 90TB 的总存储容量（18TB x 5，RAID 0）。因此，您可以放心，这款设备将为您提供克服任何存储挑战所需的工具。

所有专业人士的理想伴侣

D5 Thunderbolt 3 凭借其紧凑的体积、超大的存储容量和闪电般的速度，非常适合要求最严苛的应用，例如 4K 视频编辑以及流畅的 4K 流媒体播放。对于其他用户，尤其是对速度和存储有严格要求的用户，这款设备将是您的理想之选。

权威质量认证

Apple 和 Intel 均对 D5 Thunderbolt 3 的设计和性能进行了认证，确保了该设备的一致性能和可靠性。

数量

查看完整详细信息

Features

Large Storage Capacity

TerraMaster’s 5-bay D5 Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 90TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.

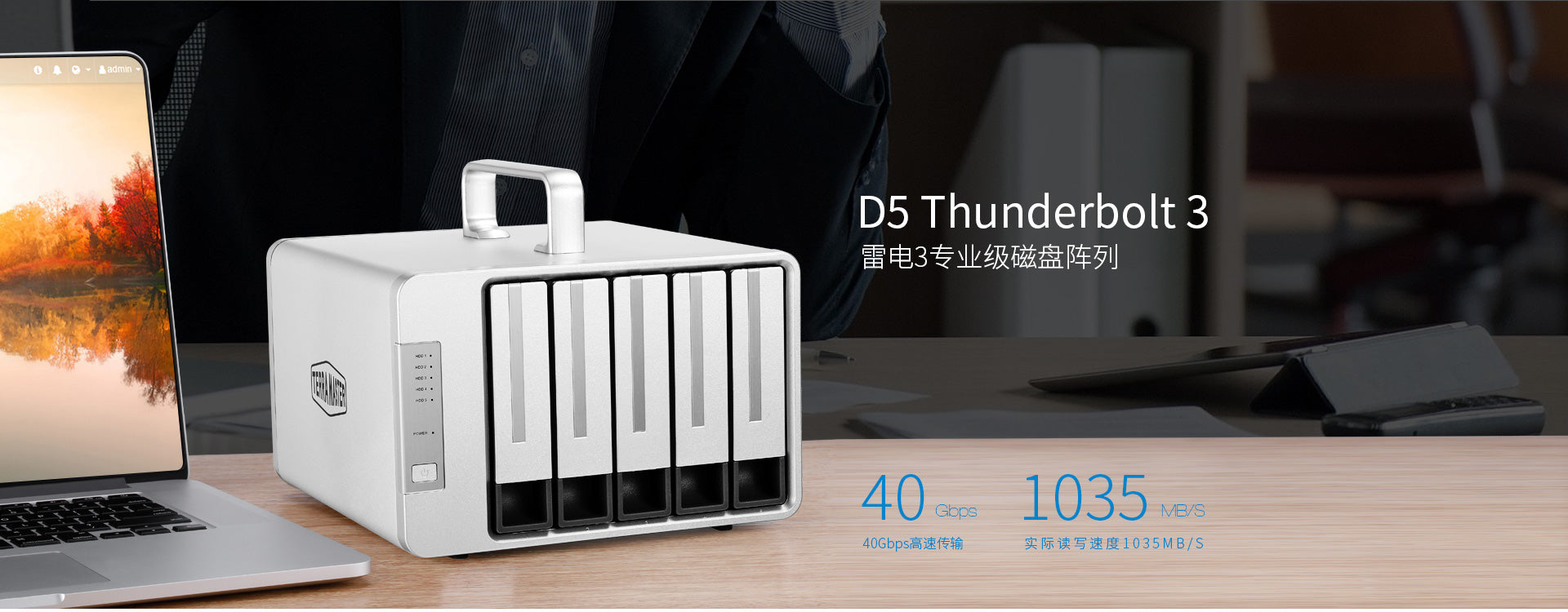

Lightning Speed!

The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 HDDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt™ 3 devices, and each one can be realized using the Thunderbolt interface.

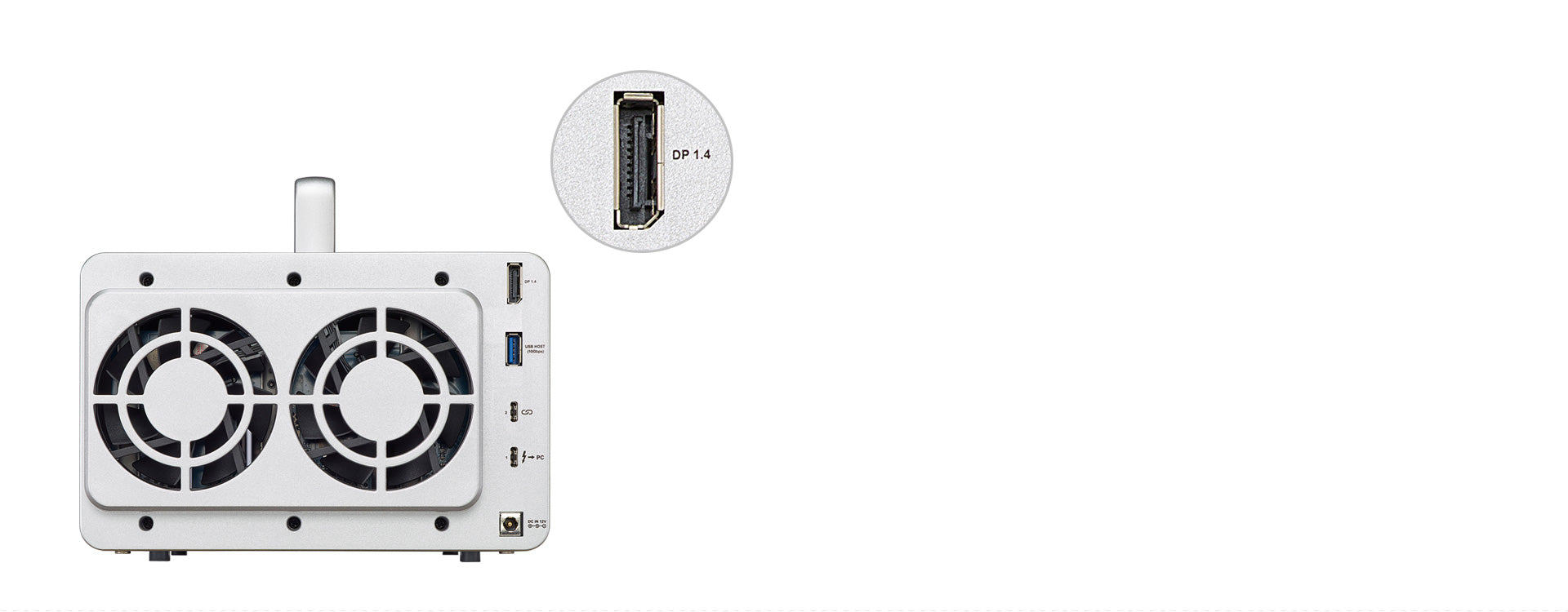

Dedicated DP Interface

Given its HD DP digital interface, video editors can connect the D5 Thunderbolt 3 to a 4K HD display to satisfy their needs.

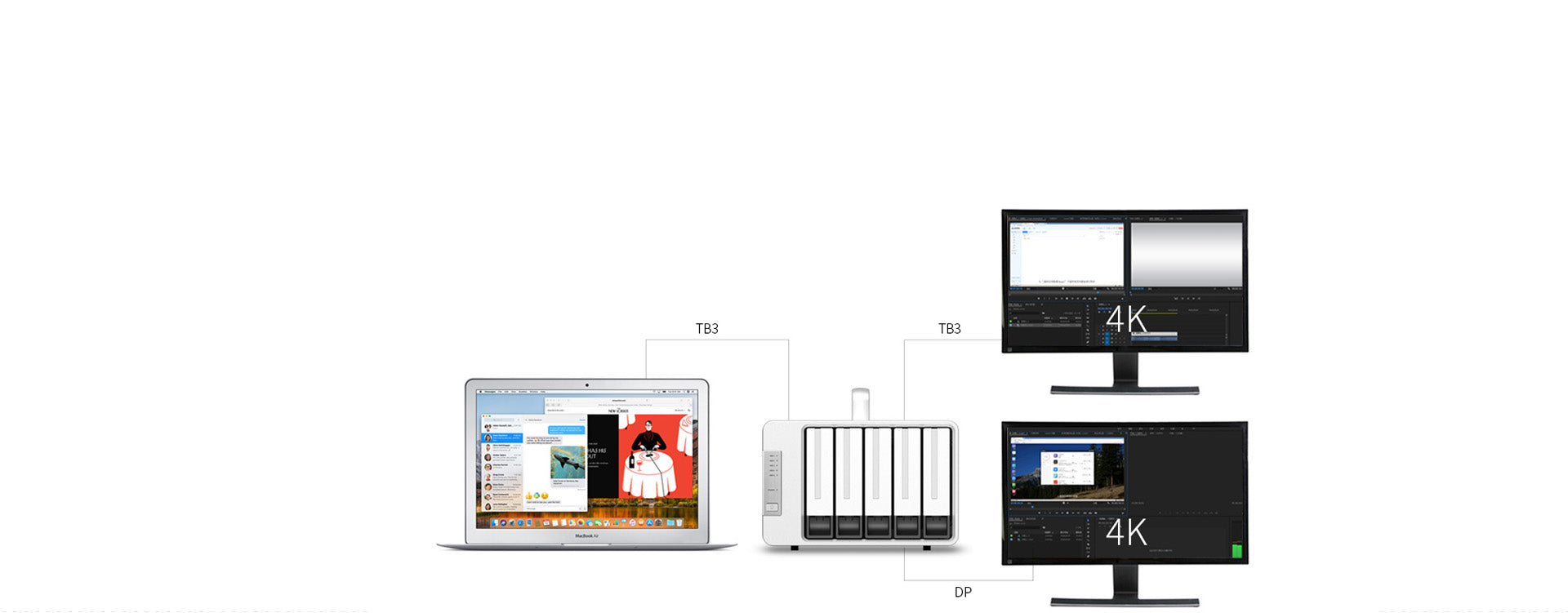

Multi-Screen Display

Capitalising on the Thunderbolt 3 and DP interfaces, the D5 Thunderbolt 3 supports multi-screen display with up to 3 screens. This is an ideal solution for multitaskers, especially when efficiency is the end goal.

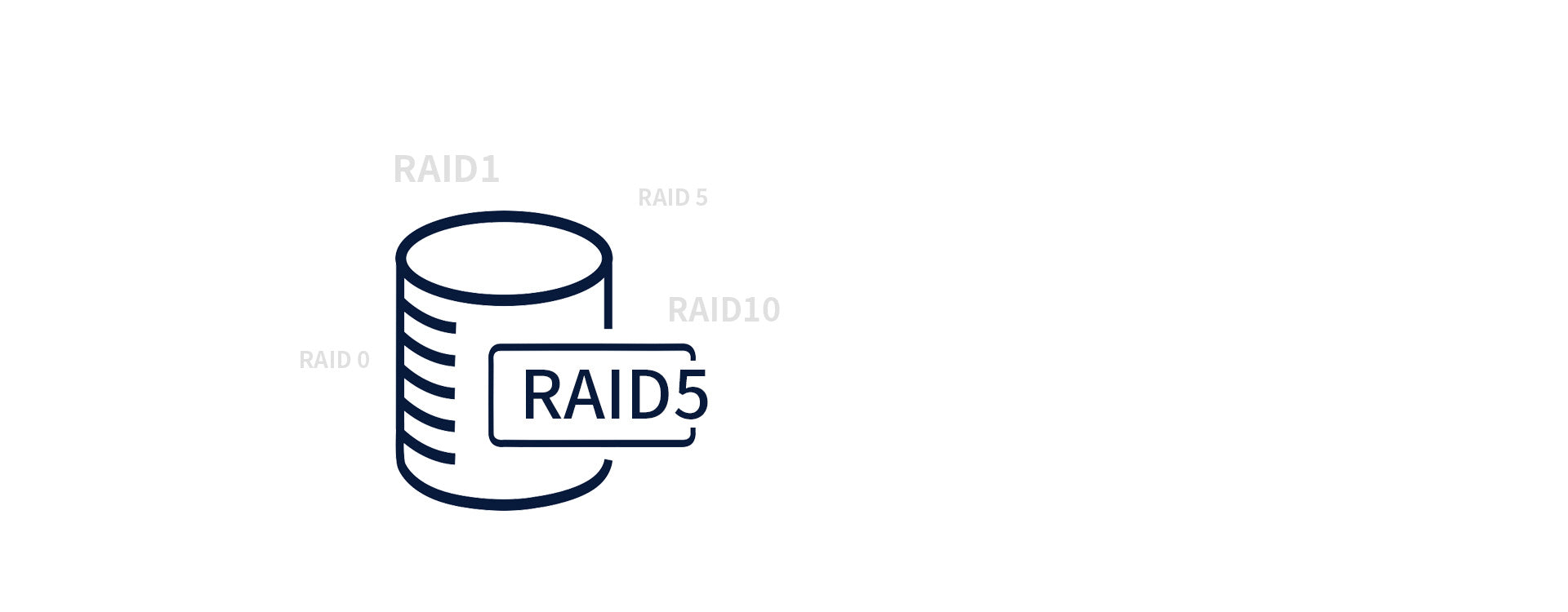

Multiple RAID Supports

The D5 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.

Professional and Safe

Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D5 Thunderbolt 3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

The Ideal Companion for All Professionals

Given its compactness, its large storage capacity, and its lightning speed, the D5 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.

Authoritative Quality Certification

Both Apple and Intel have certified the D5 Thunderbolt 3’s design and performance, ensuring the device’s consistent performance and reliability.

Exclusive worry-free warranty

Brand new replacement for 2 years, quick service in 24 hours!

Specification

D5 Thunderbolt 3 Specification

Storage
Disk Slot Number	5
Compatible Disk Types	3.5" SATA HDD
	2.5" SATA HDD
	2.5" SATA SSD
File System	NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
Maximum Internal Raw Capacity	80TB (16 TB drive x 5) (Capacity will vary along with the RAID type)
RAIDs Supported	SINGLE DISK,JBOD,RAID 0,RAID 1,RAID5,RAID10 Note: Mac 0S computers do not support RAlD online expansion and migration.
Hardware RAID	√
RAID Manager Software	√
RAID Manager Software Language	English, Chineses, Japanese
RAID Online Expansion	√
RAID Migration	√
RAID Auto-rebuilding	√
Drive Hot Swap	√
HDD Sleep	√
HDD S.M.A.R.T. Inspection	√
Sector Inspection and Parity Check	√
SSC Cache	√
Daisy Chain	√
HDD NCQ Technology	√
Alert Notice	√
Event Log	√

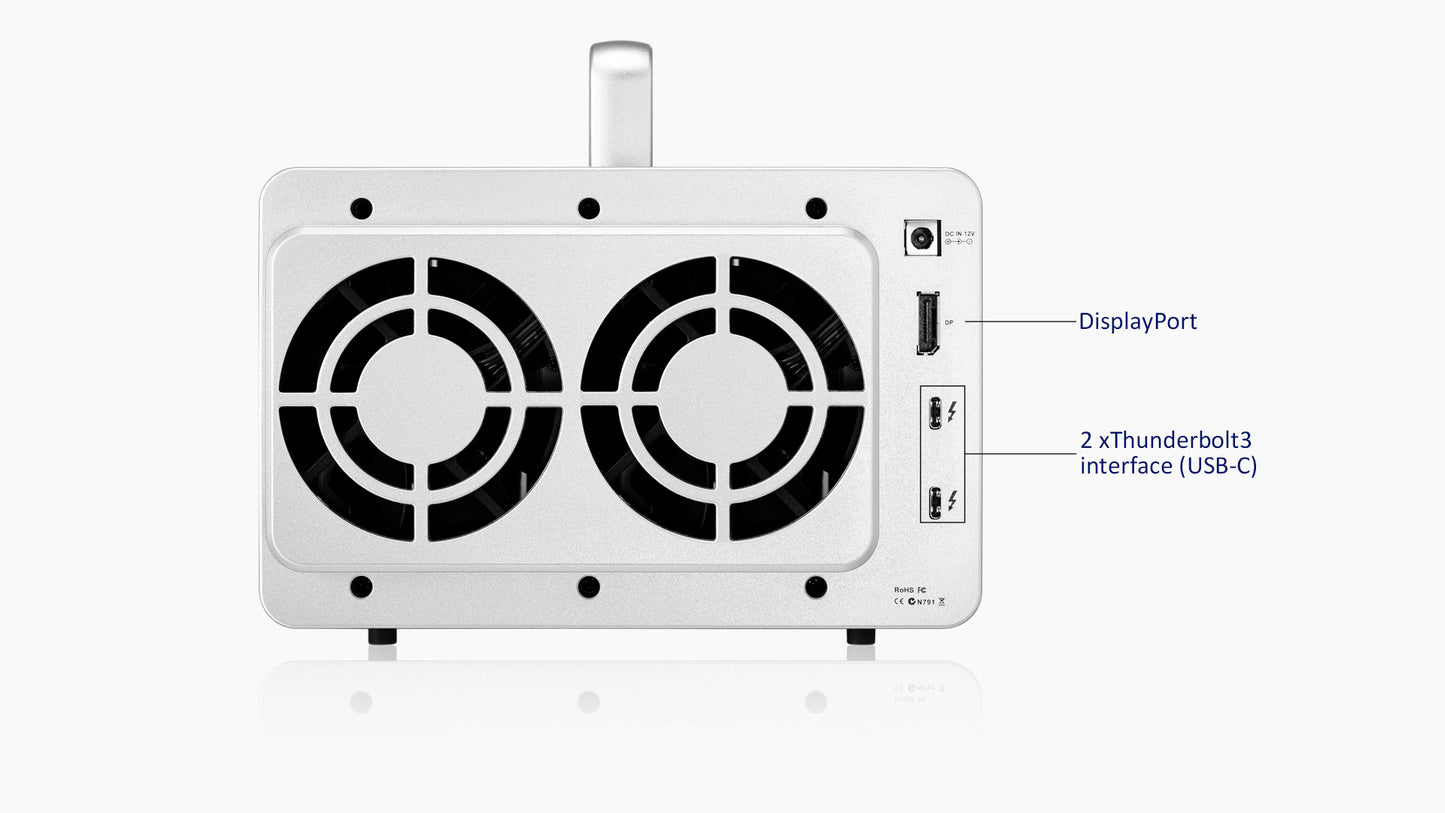

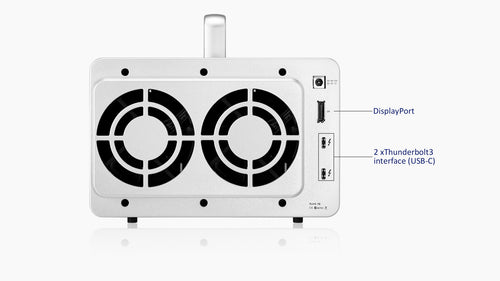

External Ports
USB	/
Thunderbolt Data Transmission	40Gb Thunderbolt 3 x 1
Thunderbolt Daisy Chain	40Gb Thunderbolt 3 x 1
USB Host	USB 3.1 Gen2 host (Use to connect USB storage device)
DP Interface	DP 1.4 x 1
Power Socket	DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.)	Read: 1035MB/sec(Use HDD under RAID 0 mode) Read: 830MB/sec(Use HDD under RAID 5 mode)
Writing Speed (max.)	Write: 917MB/sec(Use HDD under RAID 0 mode) Write: 850MB/sec(Use HDD under RAID 5 mode)

Appearance
Size (HWD)	227 x 225 x 176 mm
Packaging Size (HWD)	300275210 mm
Weight	Net Weight: 2.3Kg Gross Weight: 3.5Kg
Others
System fan	80 mm x 80 mm x25mm (x 2)
Fan mode	Smart
Noise Level	19.8dB(A)
Power Supply
Power Supply	120W
AC Input Voltage	100V to 240V AC
Current Frequency	50/60 HZ, Single Phase
Power Consumption	76.8W(Access)

Environment Temperature
Working Temperature	5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity	5% ~ 95% RH
Supported OS	Windows OS、Mac OS
Warranty	2 years
Certificate	CE, FCC, CCC, KC
Environment	RoHS compliance
Package Contents:	Host unit (x1)
	Power cord (x1)
	Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1)
	Quick Installation Guide (x1)
	Power adapter (x1)
	Screws (several)
	Limited Warranty Note x 1
