TD2 Thunderbolt 3
TD2 Thunderbolt 3
Regular price
$259.99 USD
Sale price
$259.99 USD
Regular price
Unit price
per
Shipping calculated at checkout.
1. Portable design for professionals especially those with strict speed and safety requirements, including 4K video editing. Starting from March 26th, 2021, Mac with M1 security chip was fully supported.

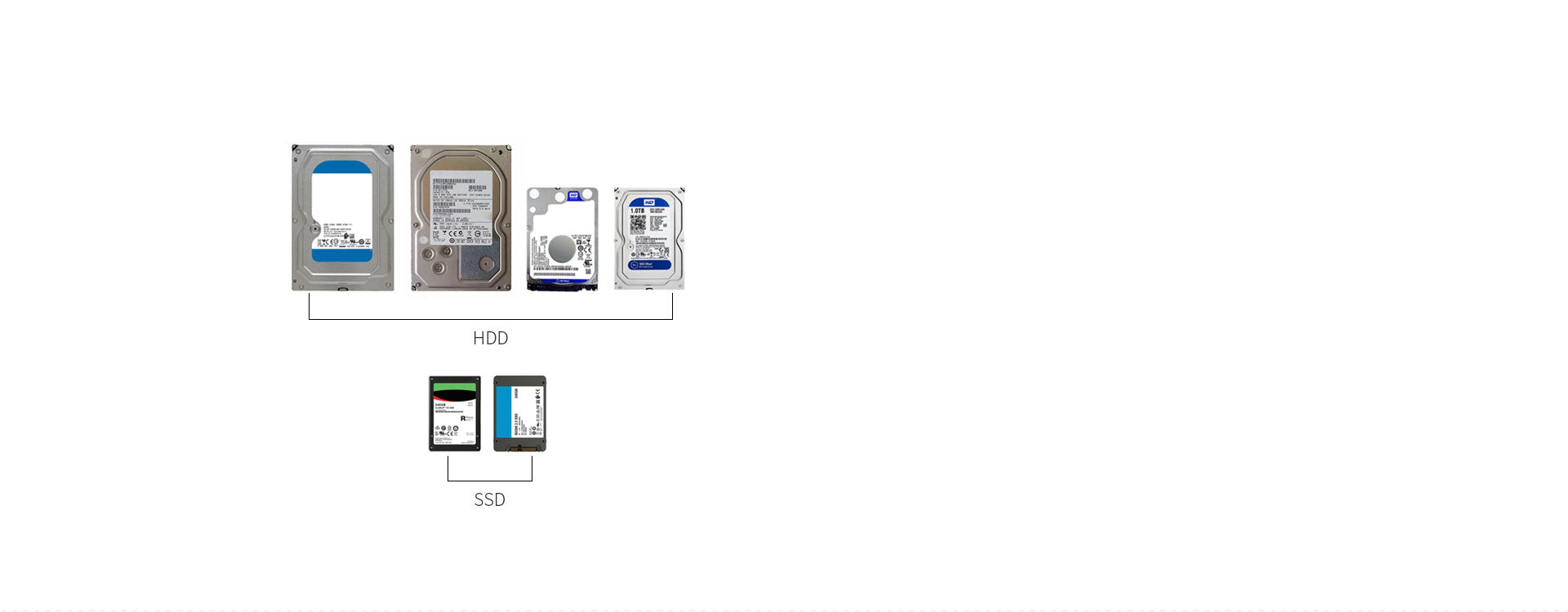

2. Two 40Gbps Thunderbolt 3 interfaces, reading speeds up to 760MB/s (with SSHD in RAID 0). Compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD.

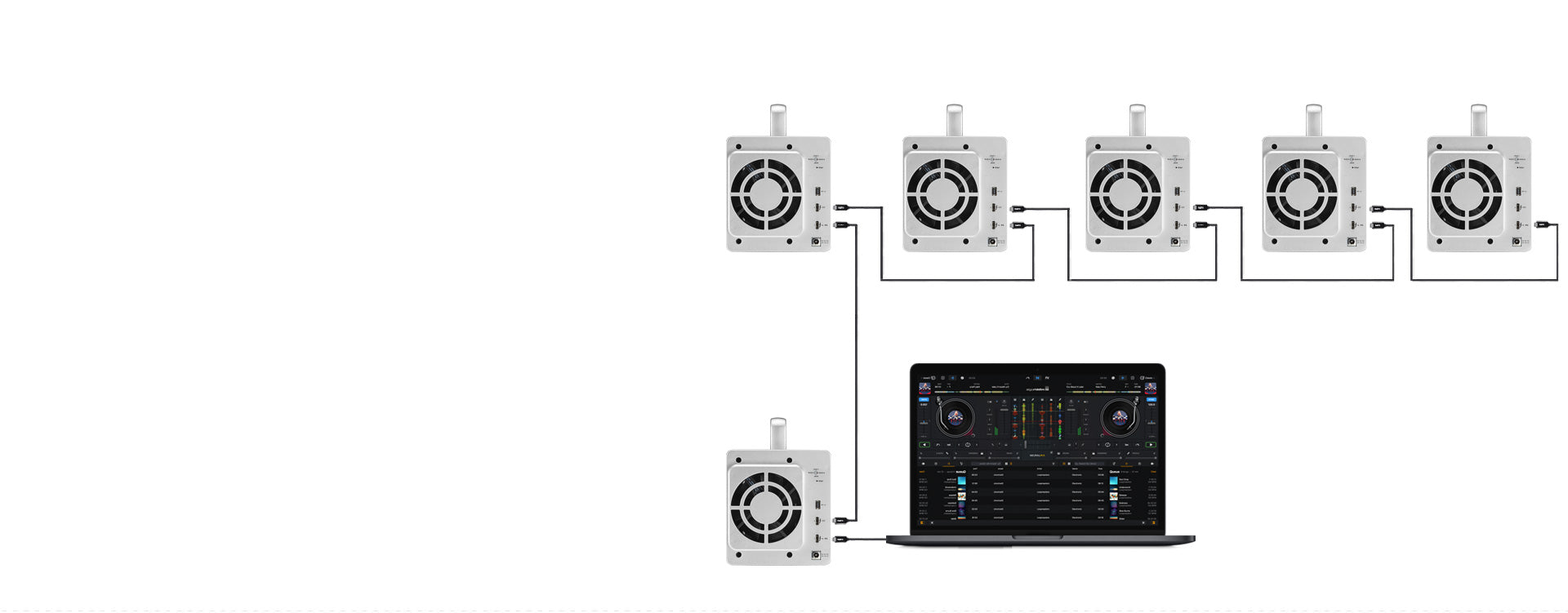

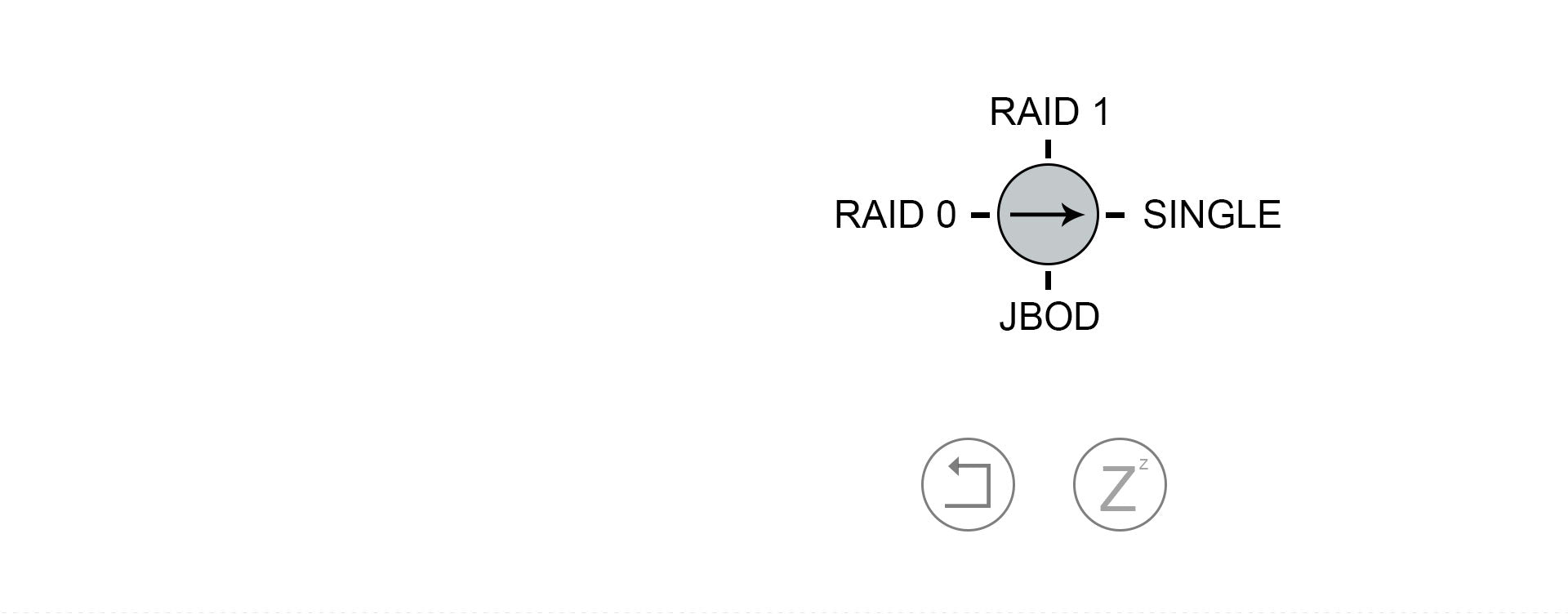

3. Hardware RAID: RAID0, RAID1, JBOD, SINGLE; Support up to 40TB storage capacity (20TB x 2, in RAID 0); Daisy-chain up to 6 devices;

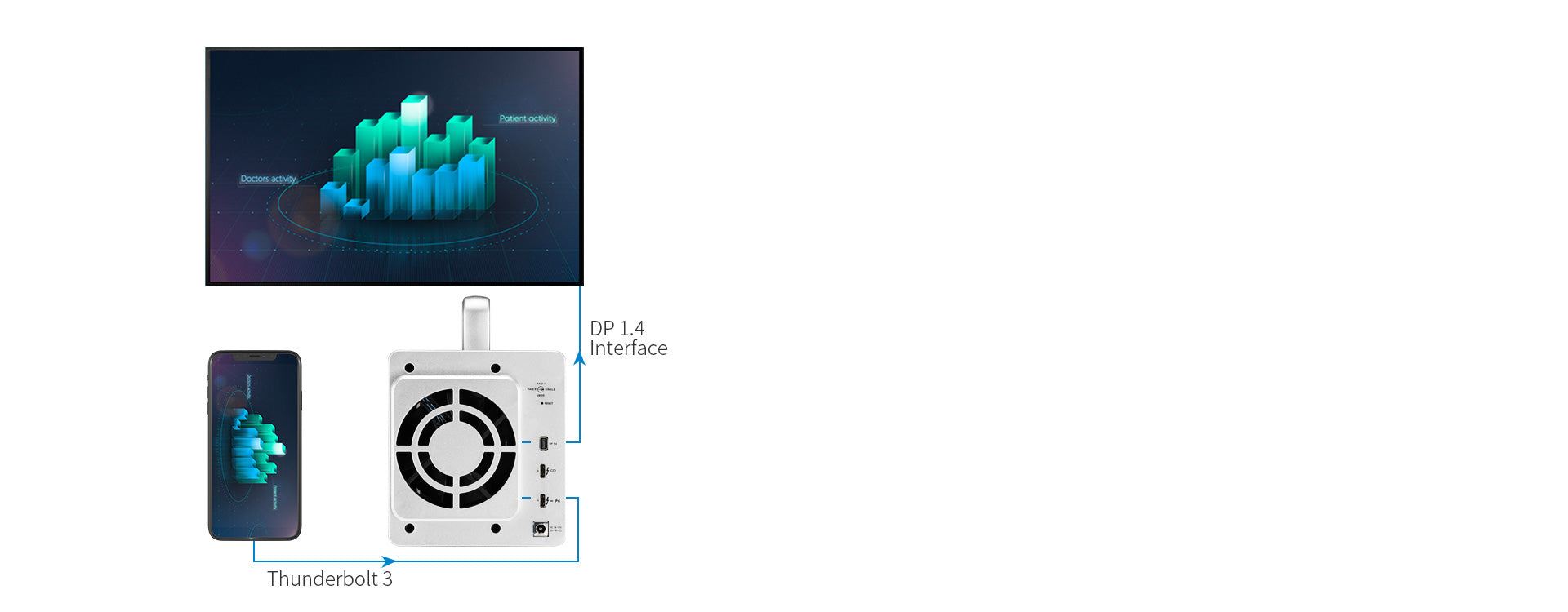

4. Capitalising on the Thunderbolt 3 and DP interfaces, the TD2 Thunderbolt 3 supports multi-screen display with up to 3 screens.
5. Power delivery provides up to 15W of power to recharge compatible laptops (Mac only, Windows not supported). Aluminum-alloy shell, 80mm fan ensures great heat dispersion.
Couldn't load pickup availability
Features
Specification
TD2 Thunderbolt3 Specification
| Storage | |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 36TB (18 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | √ |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |
| USB | / |
| Thunderbolt | 40Gb Thunderbolt 3 x 2 |
| DP Interface | DP 1.4 x 1 |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read: 810MB /sec , (Use SSD under RAID 0 mode) |
| Read: 521MB /sec , (Use HDD under RAID 0 mode) | |
| Writing Speed (max.) | Write: 806MB /sec, (Use SSD under RAID 0 mode) |
| Write: 506MB /sec, (Use HDD under RAID 0 mode) | |
| Appearance | |
| Size (H*W*D) | 227 x 119 x 173 mm |
| Packaging Size (H*W*D) | 258*220*200 mm |
| Weight | Net Weight: 1.4Kg Gross Weight: 2.2Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 18.6dB(A) |
| Power Supply | |
| Power Supply | 90W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 65.6W |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
TD2 Thunderbolt 3 Product Documentation
| Name | Description | Operation | Size |
| TD2-Thunderbolt 3 | Photo | Download | 0.22MB |
